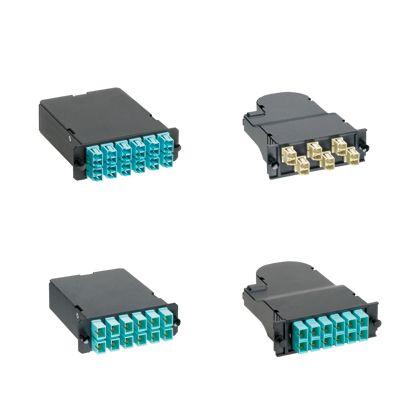

Panduit FCX-12-10BY Quicknet Sfq Series Multimode Om3 10gig 50/125 Um Fiber Optic Cassette, 12 Fiber

Key Features

• Compatible with Opticom QuickNet rack mount fiber cassette enclosures, Opticom zero RU cable management solutions and Opticom wall mount enclosures, for up to 96 fiber connections in 1RU
• Low insertion loss of 0.5 dB maximum per optimized cassette an d 1.0 dB maximum per standard cassette; ensures system meets IEEE 802.3ae maximum channel loss specification of <2.6 dB
• Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
• Connect together with high-density female MTP cable assemblies as interconnecting network segments for deploying a remote or data center location in minutes
• Significantly reduce installation time and labor by eliminating field connector terminations
• Factory terminated, assembled and 100% tested
• Insrtion loss data provided on every fiber cassette
• Return loss data provided on all single-mode fiber cassettes
• Lifetime traceability of test data to a Q.C. number on each fiber cassette
• 10Gig OM3 50/125 um Fiber cassettes are tested per IEEE 802.3ae 10GbE to support network transmission speeds up to 10 Gbps for link lengths up to 300 m and up to 550 m for OM4 at 850 nm; backward compatible with all 50/125 um (OM2) MPO or MTP system requirements
• Six LC duplex adapters to two male MTP connectors, modi fied method B, pair flipped wiring scheme
