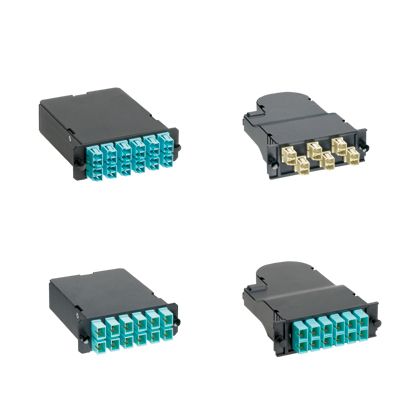

Panduit FCX-12-3SY | 12-Fiber, CassOM2, 50µm, 6DPLX, LC-MPO, A, EA
Regular price
$507.88
Unit price
Description
Description
Panduit FCX-12-3SY | 12-Fiber, CassOM2, 50µm, 6DPLX, LC-MPO, A, EA
OM3 50/125µm six SC simplex adapters to one male 12-fiber pre-terminated MTP
OM3 50/125µm six SC simplex adapters to one male 12-fiber pre-terminated MTP
Panduit - FCX-12-3SY - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FCX-12-3SY - Specifications
| Connector Type | Sc Simplex |
|---|---|
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM3 |
| Sub Brand | Opticom® |
| Number of Fibers | 12 |
| Connector 1 Type | SC Simplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Overall Depth (In.) | 6.1 |
| Overall Depth (mm) | 154 |
| Product Type | Fiber Cassette |
| Application | Cable Management in High-Density Network |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode) and 500 mating cycles (singlemode). |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| Part Features | Optimized performance available, High-density modular design, Pre-terminated modular cassette system |
| UPC | 07498304712 |
Panduit - FCX-12-3SY - Package Information
| UPC | 07498304712 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
