Brand: Panduit
|
SKU:
699657
Panduit FCZ-12-10BY | Cassette | UPC - 07498321967
Regular price
$563.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FCZ-12-10BY | Cassette | UPC - 07498321967
Regular price
$563.92
Unit price
Description
Description

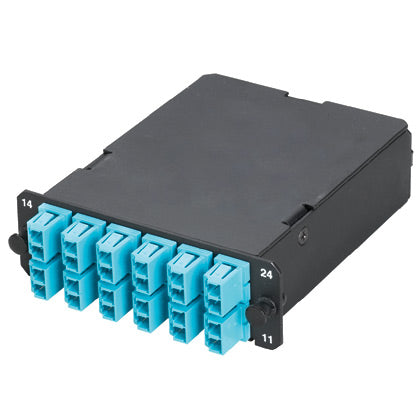

OM4 QuickNet six LC duplex adapters to one male MTP
Panduit Cassette Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM4 |
| Sub Brand | Opticom |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Depth (In.) | 6.1 |
| Overall Depth (mm) | 154 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode) and 500 mating cycles (singlemode). |
| Product Type | Cassette |
| Application | Cable Management in High-Density Network |
| Color | Aqua |
Panduit Cassette Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - FCZO-12-10Y Product Page | Download and View |
| Technical References | Troubleshooting a Permanent Link: FBTR117--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
