Brand: Panduit
|
SKU:
421777

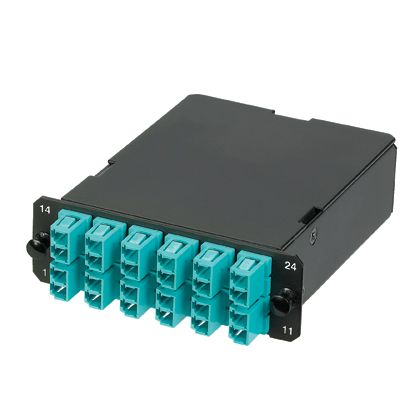

Panduit FCZ-24-10BY | 12-Fiber, CassOM2, 50µm, 6DPLX, LC-MPO, A, EA
Regular price
$1,096.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FCZ-24-10BY | 12-Fiber, CassOM2, 50µm, 6DPLX, LC-MPO, A, EA
Regular price
$1,096.60
Unit price
Description
Description
Panduit FCZ-24-10BY | 12-Fiber, CassOM2, 50µm, 6DPLX, LC-MPO, A, EA
OM4 QuickNet twelve LC duplex adapters to two male MTP
OM4 QuickNet twelve LC duplex adapters to two male MTP
Panduit - FCZ-24-10BY - Features
- Without pulling eye
Specifications
Specifications
Panduit - FCZ-24-10BY - Specifications
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
|---|---|
| Fiber Type | OM4 |
| Sub Brand | Opticom® |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Overall Depth (In.) | 6.1 |
| Overall Depth (mm) | 154 |
| Product Type | Fiber Cassette |
| Application | Cable Management in High-Density Network |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, supports IEEE 802.3ae and ANSI T11.2, exceeds TIA/EIA-455-21A |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498321969 |
Panduit - FCZ-24-10BY - Package Information
| UPC | 07498321969 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
