Panduit FCZO-12-10Y | Opticom Cassette
Regular price
$613.09
Unit price
Brand: Panduit
|
SKU:
428539
Regular price
$613.09
Unit price
Description
Description

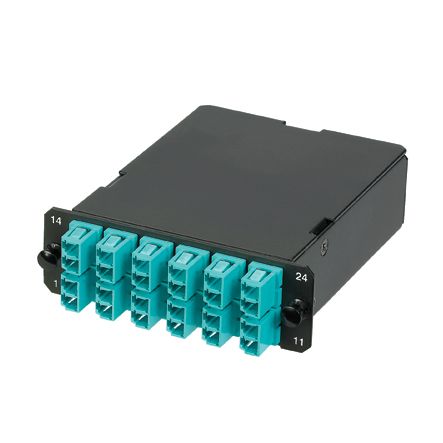

Panduit FCZO-12-10Y | Opticom Cassette
Panduit FCZO-12-10Y | FIBER-ACCY | 10GIG OM4 50/125 FIBER MODULE
Optimized OM4 QuickNet six LC duplex adapters to one male MTP
Specifications
Specifications
Panduit - FCZO-12-10Y - Product Categories
- Fiber Optic Systems
- Fiber Optic Cassettes
Panduit - FCZO-12-10Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FCZO-12-10Y |
| Item Description | Opticom Cassette |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM4 |
| Sub Brand | Opticom |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Depth (In.) | 6.1 |
| Overall Depth (mm) | 154 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode) and 500 mating cycles (singlemode). |
| Product Type | Cassette |
| Application | Cable Management in High-Density Network |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| Part Features | Optimized performance available, High-density modular design, Pre-terminated modular cassette system |
Panduit - FCZO-12-10Y - Package Information
| UPC | 07498321972 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
