Brand: Panduit
|
SKU:
10274741

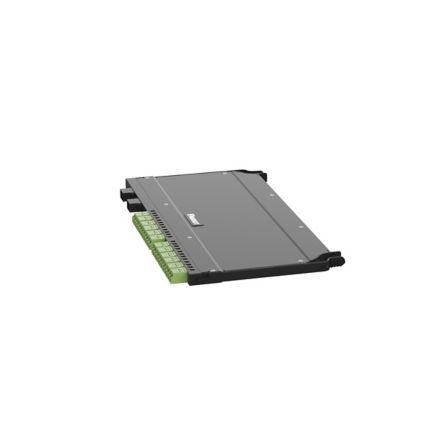

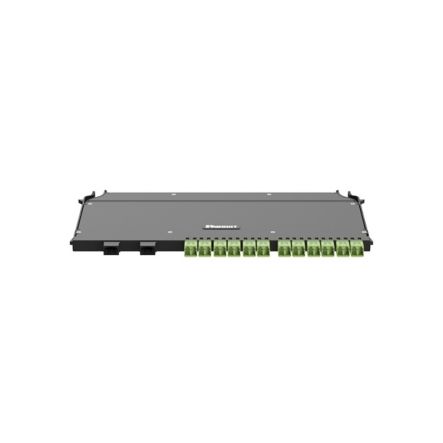

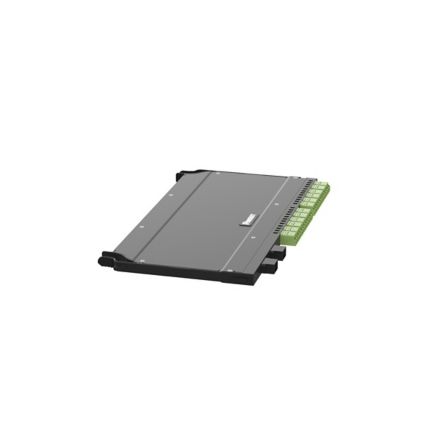

Panduit FDCWA-24-10ULH | FlexCore Front Access Cassette
Regular price
$1,411.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FDCWA-24-10ULH | FlexCore Front Access Cassette
Regular price
$1,411.26
Unit price
Description
Description
Panduit FDCWA-24-10ULH | FlexCore Front Access Cassette
FlexCore Front Access ODF Fiber Optic Cassette, Multimode (OM5) 24-fiber LC Duplex to 2xMPO-12, Universal, Ultra IL, Left Hand Orientation
Panduit FDCWA-24-10ULH | 24F Front Access Cassette, Om5 Lc Duplex To 2 X Mpo12, Universal Polarity, Ultra Il. Lh
Panduit - FDCWA-24-10ULH - Features
- FlexCore Front Access ODF Fiber Optic Cassette, Multimode (OM5) 24-fiber LC Duplex to 2xMPO-12, Universal, Ultra IL, Left Hand Orientation
Specifications
Specifications
Panduit - FDCWA-24-10ULH - Product Categories
- Fiber Optic Systems
- Fiber Optic Cassettes
Panduit - FDCWA-24-10ULH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FDCWA-24-10ULH |
| Item Description | FlexCore Front Access Cassette |
| Connection Type | LC |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Adapter Color | Lime Green |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 11.53 |
| Overall Width (mm) | 292.8 |
| Overall Depth (In.) | 6.75 |
| Overall Depth (mm) | 171.5 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Standards Met | ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS 2002/95/EC compliant, supports IEEE802.3 and ANSI T11.2 (Fiber Channel) |
| Product Type | FlexCore Front Access Cassette |
| Application | FlexCore ODF/OSF |
| Color | Black |
| Fiber Diameter (µm) | 50 |
Panduit - FDCWA-24-10ULH - Package Information
| UPC | 61305683273 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1326 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.3262 |
Panduit - FDCWA-24-10ULH - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
