Panduit FEIAB58 | FIBERRUNNER THREADED ROD
Regular price
$73.10
Unit price
Brand: Panduit
|
SKU:
286992
Regular price
$73.10
Unit price
Description
Description
Panduit FEIAB58 | FIBERRUNNER THREADED ROD

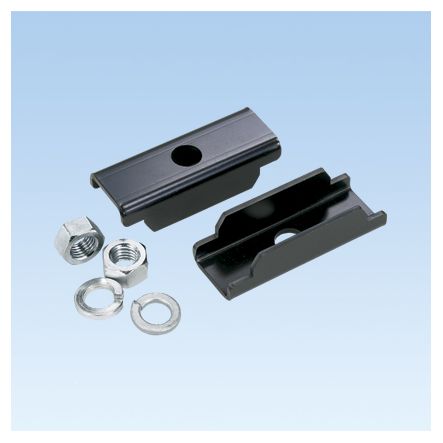

Bracket consists of two identical components that clamp onto the crossmembers of standard EIA/TIA racks and are secured with standard hex nuts and split lockwashers (included) tightened onto a length of 5/8" diameter threaded rod (not included). The threaded rod is positioned in the center of the brackets providing a vertical threaded rod stud to mount FiberRunner and Fiber-Duct Threaded Rod Mounting Brackets onto.
Panduit FEIAB58 Bracket, Mount Threaded Rod To Std. Eia/tia Racks, Black
Specifications
Specifications
Panduit - FEIAB58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FEIAB58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FEIAB58 |
| Item Description | FIBERRUNNER THREADED ROD |
| Application | (1) Comprised Of Channel, Fittings, And Brackets Designed To Segregate, Route, And Protect Fiber Optic Cable And Copper Cabling. (2) It Is Suited For Data Center Applications Where Cable Is Routed From DistributionAreas To Equipment Cabinets Or Racks. |
| Product Type | Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Standard EIA/TIA racks |
| Includes | (2) Bracket Clips, (2) 5/8" Helical Spring Lockwashers, (2) 5/8-11 Heavy Hex Nuts. |
| Material | Steel |
| Number of Pieces | 3 |
| Overall Height (In.) | 1.49 |
| Overall Height (mm) | 37.8 |
| Overall Length (In.) | 1.06 |
| Overall Length (mm) | 26.9 |
| Overall Width (In.) | 4.11 |
| Overall Width (mm) | 104.4 |
| Standards Met | Ul Listed to 2024 Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) Slotted Wall Csa Certified (File No. 016446 0 000) Slotted Wall |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
| Application | RACK/CABINET/ENCLOSURE |
| Component | HARDWARE |
| Connection Type | MECHANICAL |
| UNSPSC Code | 39121400 |
Panduit - FEIAB58 - Package Information
| UPC | 07498399314 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2728 |
