Brand: Panduit
|
SKU:
666465
Panduit FHCZA-12-10BN | Cassette
Regular price
$688.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FHCZA-12-10BN | Cassette
Regular price
$688.29
Unit price
Description
Description

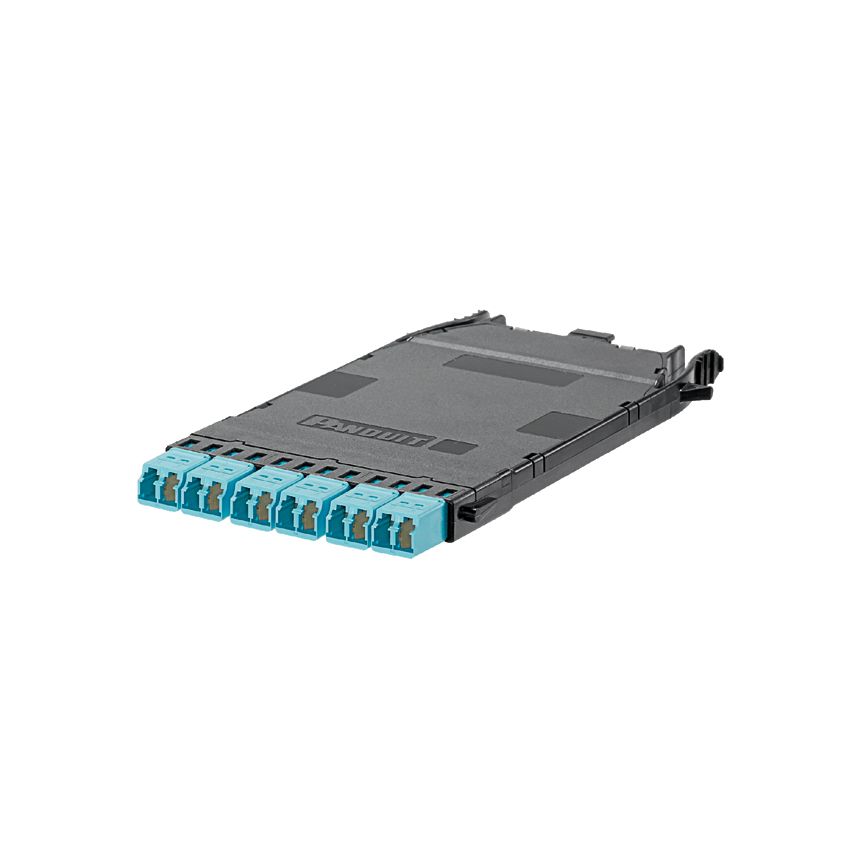

Panduit FHCZA-12-10BN | Cassette
OM4 HD Flex Cassette with 1 MPO to 6 duplex LC, Ultra Low Loss, Method B Polarity.
Panduit HD Flex Fiber Optic Cassette, 6-Port Method B Ultra Low, Duplex Adapter, LC End A, Male MPO End B, 12 Fibers, 50/125 um OM4 Multi-Mode Fiber, Aqua
Specifications
Specifications
Panduit - FHCZA-12-10BN - Specifications
| Type | Splice Module |
|---|---|
| UNSPSC Code | 43223300 |
| Fiber Type | OM4 |
| Sub Brand | HD Flex |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 7.5 |
| Overall Width (mm) | 190.4 |
| Overall Depth (In.) | 7.3 |
| Overall Depth (mm) | 184 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Standards Met | Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant |
| Product Type | Cassette |
| Application | Cable Management |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498313804 |
Panduit - FHCZA-12-10BN - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
