Brand: Panduit
|
SKU:
813356
Panduit FHCZO-24F-10AF | HD Flex Cassette
Regular price
$1,270.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FHCZO-24F-10AF | HD Flex Cassette
Regular price
$1,270.39
Unit price
Description
Description

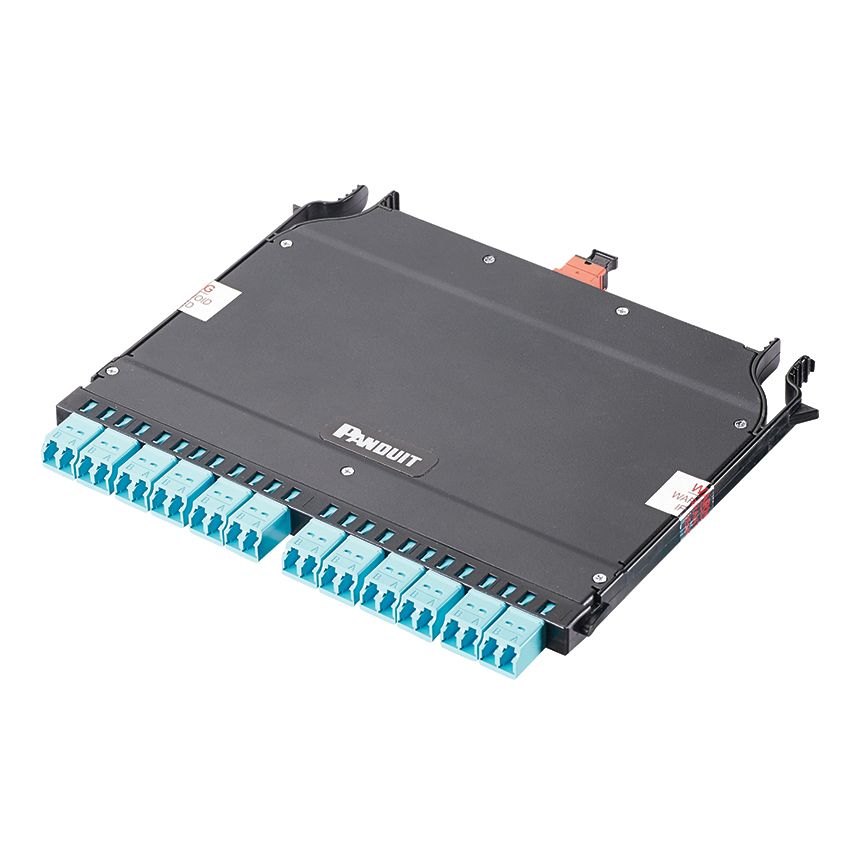

Panduit FHCZO-24F-10AF | HD Flex Cassette
OM4 HD Flex Cassette, 12-Port Duplex LC to (1) 24-fiber MPO, Optimized Loss, Method A pair flipped
Panduit FHCZO-24F-10AF Om4 Hd Flex Cassette, 12-port Duplex Lc To (1) 24-fiber Mpo, Optimized Loss, Method A Pair Flipped
Specifications
Specifications
Panduit - FHCZO-24F-10AF - Product Categories
- Fiber Optic Systems
- Fiber Optic Cassettes
Panduit - FHCZO-24F-10AF - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FHCZO-24F-10AF |
| Item Description | HD Flex Cassette |
| Fiber Type | OM4 |
| Sub Brand | HD Flex |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Red |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 7.5 |
| Overall Width (mm) | 190.4 |
| Overall Depth (In.) | 7.3 |
| Overall Depth (mm) | 184 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Standards Met | Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant |
| Product Type | Cassette |
| Application | Cable Management |
| Color | Red |
| Fiber Diameter (µm) | 50 |
Panduit - FHCZO-24F-10AF - Package Information
| UPC | 61305617402 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0849 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.8491 |
