Panduit FIELDKIT | Field Polish Fiber Termination Kit
Regular price
$6,358.69
Unit price
Description
Description

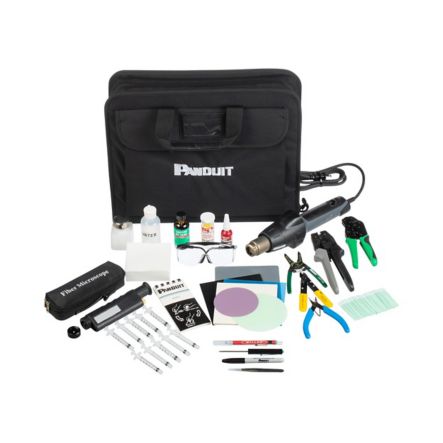

Panduit FIELDKIT | Field Polish Fiber Termination Kit
The field polish fiber termination kit comes equipped with the components needed to terminate field polish fiber connectors quickly and reliably.
Panduit - FIELDKIT - Features
- Tools, consumables, installation instructions and stripping templates necessary for termination of all Panduit field polish connectors; includes FHSCT heat shrink curing tool - 110 V AC, 60 Hz.
- For termination of all Panduit field polish connectors
- Fast acting adhesive; no long curing epoxy required for termination
- Kit provides consumables for terminating up to 200 field polish connectors
- Include installation instructions and stripping templates for all Panduit field polish connectors; also available on www.panduit.com
Specifications
Specifications
Panduit - FIELDKIT - Product Categories
- Fiber Optic Systems
- Fiber Optic Termination Kits
Panduit - FIELDKIT - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FIELDKIT |
| Item Description | Field Polish Fiber Termination Kit |
| Product Type | Field Polish Termination Kit |
| Standards Met | RoHS Compliant |
| Application | Termination of field-polish fiber optic connectors |
| Includes | (1) FKITCASE Case for fiber termination kits, (1) CST115 Fiber cable jacket stripper, (1) FALC Alcohol bottle (empty), (1) FBFSP Fiber buffer stripper, (1) FSCDVR Screwdriver,(1) FGLS Safety glasses,(1) FTWZR Tweezers,(1) FWBTL Water bottle (empty),(1) FKS Fiber Kevlar shears,(1)FWRKMAT Fiber safe workmat, (1) FSCRIBE Carbide scribe,(1) FLCASCP 1.25mm adapter for FSCOPE,(1) FLOUPEX10 Eye loupe (10x),(1) FCRP5 Crimp tool (hex sizes: 0.048", 0.100", 0.128", 0.151", 0.190"),(1) FLPT Crimp tool required for 1.6mm/2.0mm jacketed cable termination,(1) FJPKGU Universal polishing puck (2.5mm ferrule),(1) FLCPK LC polishing puck (1.25mm ferrule),(18) FPAD Fiber polishing pad (70 durometer),(1) FLCPAD Polishing pad and plate (85 durometer),(1) FHSCT Heat shrink curing tool (110VAC, 60Hz) required for 1.6mm/2.0mm jacketed cable termination,(1) FSYR-X Syringes with needle tips,(1) FPWIRE Piano wire,(1) LJSL4-Y3-2.5 Cable labels, (1) FJPMR Primer (50ml), (1) FJPXY Anaerobic adhesive (10ml), (1) FPP5-L 5µm polishing paper (AL2O3), (1) FPF1-V 1µm diamond polishing film,(1) FLCFPLF-X 0.05µm lapping film,(1) FWP-C Lint-free wipes,(1) FSWB-C Cleaning swabs,(1) FSTY Safety stickers for fiber scraps,(1) PFX-0 Permanent marking pen – fine tip (one included in each kit). |
| Part Features | Simplifies and reduces installation time by 50% compared to heat cured epoxy terminations; curing oven/time not required |
Panduit - FIELDKIT - Package Information
| UPC | 07498371791 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.3109 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
