Brand: Panduit
|
SKU:
10083397

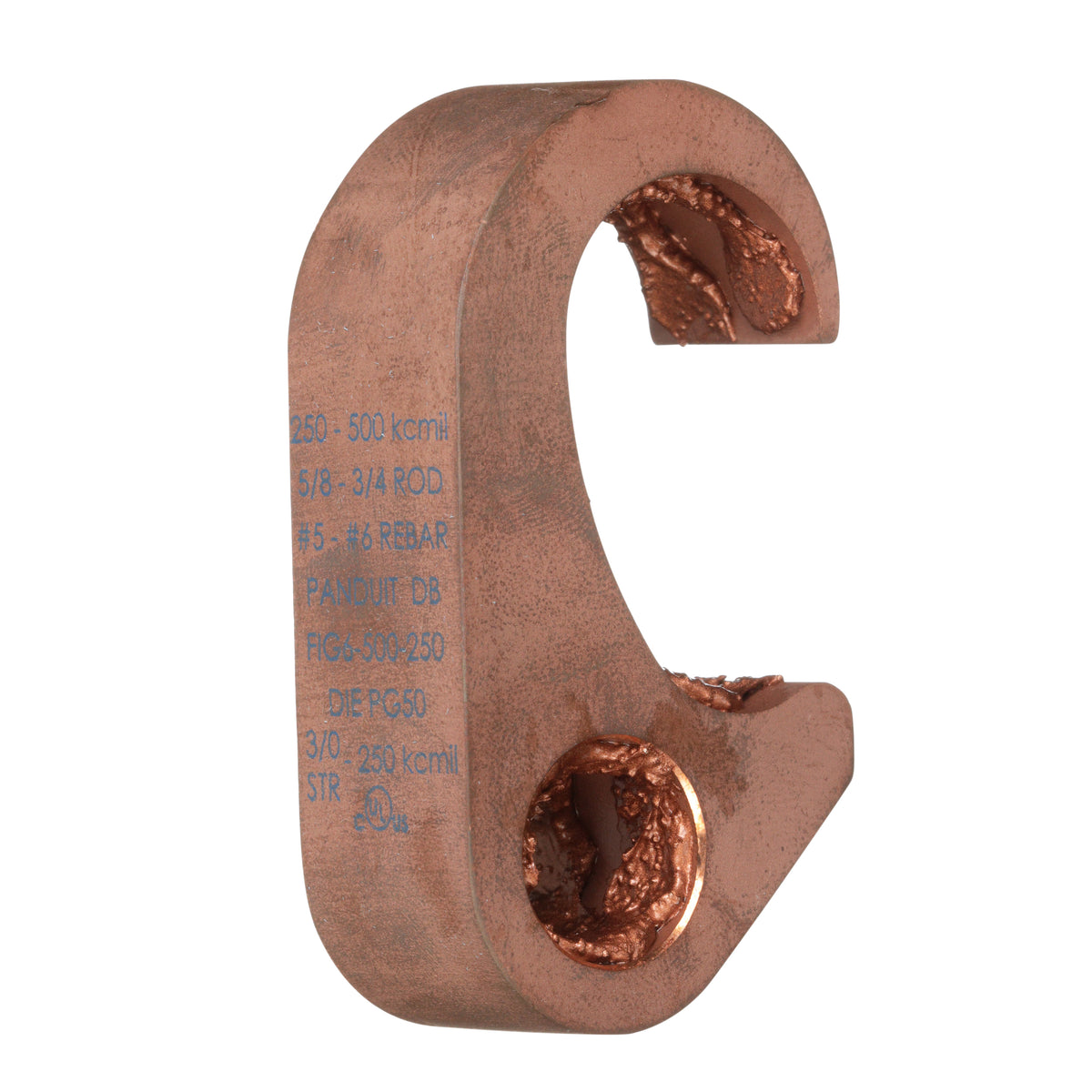

Panduit FIG6-500-250 | Grounding Fig. 6 Connector | UPC - 61305666834
Regular price
$41.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FIG6-500-250 | Grounding Fig. 6 Connector | UPC - 61305666834
Regular price
$41.70
Unit price
Description
Description
The FIG6-500-250 Grounding "Figure 6" Style Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 3/0 Str - 250 kcmil (85-120mm2) Tap
Panduit Panduit FIG6-500-250 | Grounding Fig. 6 Connector | UPC - 61305666834 Key Specs
| Sub Brand | StructuredGround |
| Overall Length (In.) | 1.4 |
| Overall Length (mm) | 35.6 |
| Material | High Conductivity Copper |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Height (In.) | 2.6 |
| Overall Height (mm) | 66 |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Minimum Copper Conductor Size (kcmil) | 250 |
| Maximum Ground Rod Size (In.) | 3/4 |
| Maximum Ground Rod Size (mm) | 19.05 |
| Minimum Ground Rod Size (In.) | 5/8 |
| Minimum Ground Rod Size (mm) | 15.87 |
| Maximum Rebar Size (AWG) | 6 |
| Maximum Rebar Size (In.) | 3/4 |
| Maximum Rebar Size (mm) | 19.05 |
| Minimum Rebar Size (AWG) | 5 |
| Minimum Rebar Size (In.) | 5/8 |
| Minimum Rebar Size (mm) | 15.87 |
Panduit Panduit FIG6-500-250 | Grounding Fig. 6 Connector | UPC - 61305666834 Data Sheets
| Part Drawings | Figure 6 Series Copper Compression Grounding Tap Connectors | Download and View |
| Installation Documents | Figure 6 and GCC6 Grounding Connectors Installation Instruction T-PMPI-324-PC | Download and View |
Panduit Panduit FIG6-500-250 | Grounding Fig. 6 Connector | UPC - 61305666834 Environmental Information
| Panduit's RoHS Statement | Download and View |
