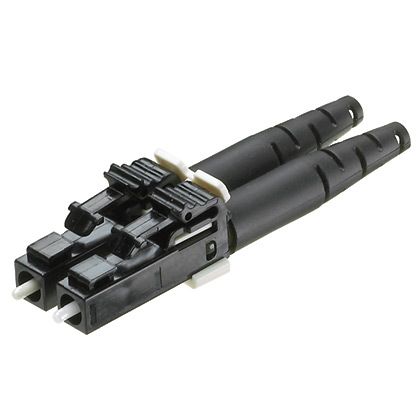

Panduit FLCDMBLY | Field Polish LC Connector, Duplex, 50µm Multimode, 1.6mm Black Boot
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLCDMBLY | Field Polish LC Connector, Duplex, 50µm Multimod...
Description
Description
Our high-performance field polish LC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Field Polish LC Duplex Pot & Polish Style OM2/OM3/OM4 Connector, Black Housing with 3.0mm Black Boot
Panduit Opticom Fiber Optic Connector, Field Polish, Duplex LC Connector, OM2/OM3/OM4 Multi-Mode Fiber, 1.6 to 2 mm Jacketed Cable, Zirconia Ceramic Ferrule, Black
Panduit - FLCDMBLY - Features
- Factory pre-polished fiber endface eliminates time consuming field polishing
- Low profile latch resists cable snagging
- Audible click upon successful mating
- Field installable duplex clip with integrated polarity markers
- One connector body design for both simplex and duplex applications
- Protective cap locks onto connector latch with audible click
- Anaerobic adhesive field installation
- Rugged body construction
- Independent free floating ferrules ensures physical fiber contact for consistent low return loss, unlike unitary multi fiber ferrule connectors
- Rear pivot latch design, robust construction
Specifications
Specifications
Panduit - FLCDMBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDMBLY |
| Connector Type | Lc |
| Fiber Type | Om1/Om2/Om3/Om4 Multimode |
| UNSPSC Code | 43223300 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Field Polish |
| Fiber Type | OM2/OM3/OM4 |
| Connection Type | LC |
| Application | Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions. |
| Body Style | Duplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.11 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| UPC | 07498312719 |
Panduit - FLCDMBLY - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
