Brand: Panduit
|
SKU:
313206

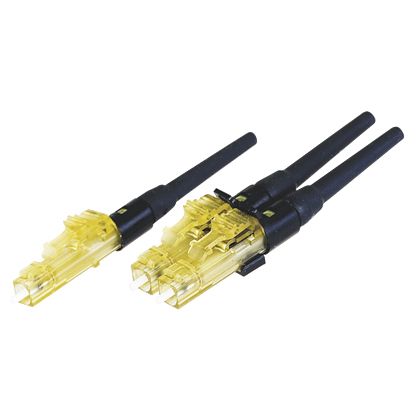

Panduit FLCDMC5BLY | OptiCam LC Duplex, 50µm OM2, with Black Boot
Regular price
$50.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLCDMC5BLY | OptiCam LC Duplex, 50µm OM2, with Black Boot
Regular price
$50.91
Unit price
Description
Description
Panduit FLCDMC5BLY | OptiCam LC Duplex, 50µm OM2, with Black Boot
Cut your installation time in half with our LC pre-polished fiber optic connector. Ideal for fast repairs, data center connections, and tight spaces.
Pre-Polished LC Duplex OptiCam Style OM2 Connector, Natural Housing with 900um Black Boot
Panduit OptiCam Fiber Optic Connector, Duplex Pre-Polished, LC Connector, OM2 Multi-Mode Fiber, 900 um Tight Buffered Cable, Zirconia Ceramic Ferrule, Black
Panduit - FLCDMC5BLY - Features
- Factory pre-polished fiber stub endface
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non-optical disconnect design
- Mechanical cable retention
- Universal termination tool
Specifications
Specifications
Panduit - FLCDMC5BLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDMC5BLY |
| Connector Type | Lc |
| Fiber Type | Om2/Om3/Om4 Multimode |
| UNSPSC Code | 43223300 |
| Polish Type | Pre-Polished |
| Fiber Type | OM2 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Duplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| UPC | 07498304740 |
Panduit - FLCDMC5BLY - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
