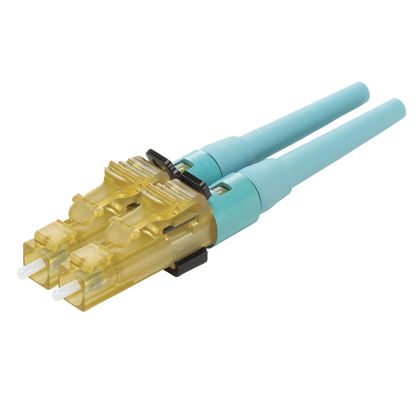

Panduit FLCDMCXAQY | OptiCam LC Duplex Connector, OM3/OM4/OM5, Aqua
Description
Description
Cut your installation time in half with our LC pre-polished fiber optic connector. Ideal for fast repairs, data center connections, and tight spaces.
The OptiCam LC Fiber Optic Connector is a multimode 50/125Î1/4m OM3/OM4/OM5 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an aqua-colored backbone and 900Î1/4m boot.
The LC OptiCam OM3/OM4 10Gig 50/125 um multimode duplex fiber optic connector in aqua is intended for 900 um tight-buffered fiber installations. The connector has a factory pre-polished fiber endface which eliminates time-consuming field polishing and helps reduce installation costs, labor-intensive practices, and the number of tools required.
Panduit OptiCam 10Gig Fiber Optic Connector, Pre-Polished, LC Duplex Connector, 10Gig OM3/OM4 Multi-Mode Fiber, 900 um Tight-Buffered Fiber Cable, 1.25 mm Zirconia Ceramic Ferrule, Ceramic, Aqua
Panduit - FLCDMCXAQY - Features
- Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non-optical disconnect design
- Mechanical cable retention
- Universal termination tool
Specifications
Specifications
Panduit - FLCDMCXAQY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDMCXAQY |
| Connector Type | Lc |
| Fiber Type | Om3/Om4 Multimode |
| UNSPSC Code | 43223300 |
| Note | For use with the OptiCam 2 Termination Tool |
| Polish Type | Field Polish |
| Fiber Type | OM3/OM4/OM5 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Duplex |
| Color | Aqua |
| Boot Color | Aqua |
| Backbone Color | Aqua |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements |
| Product Type | Fiber Optic Connector |
| UPC | 07498304742 |
Panduit - FLCDMCXAQY - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
