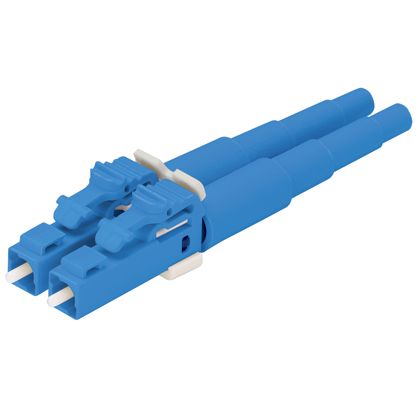

Panduit FLCDSCBUY | OptiCam LC Duplex Connector, OS1/OS2, Blue
Description
Description
Cut your installation time in half with our LC pre-polished fiber optic connector. Ideal for fast repairs, data center connections, and tight spaces.
LC OptiCam Single-mode Duplex Fiber Optic Connector for 900µm tight-buffered fiber installation.
The LC OptiCam OS2 singlemode duplex pre-polished connector in blue with zirconia ceramic ferrules is intended for 900 ?µ tight-buffered fiber installations which are outside the scope of the RoHS directive. The connector also contains a factory-terminated fiber, eliminating the need for field polishing and adhesive.
Panduit OptiCam Fiber Optic Connector, Pre-Polished, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Cam Termination Mounting, Plastic, Blue
Panduit - FLCDSCBUY - Features
- Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
- Low profile latch resists cable snagging
- Wide positive grip thumb latch
- Audible click upon successful mating
- Field installable duplex clip with integrated polarity markers
- One connector body design for both simplex and duplex applications
- Protective cap locks onto connector latch with audible click
- Anaerobic adhesive field installation
- Rugged body construction
- Independent free floating ferrules
- Rear pivot latch design, robust construction
Specifications
Specifications
Panduit - FLCDSCBUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDSCBUY |
| UNSPSC Code | 43223300 |
| Note | For use with the OptiCam 2 Termination Tool |
| Polish Type | Pre-Polished |
| Fiber Type | OS1/OS2 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Duplex |
| Color | Blue |
| Boot Color | Blue |
| Backbone Color | Blue |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements |
| Product Type | Fiber Optic Connector |
| UPC | 07498317596 |
Panduit - FLCDSCBUY - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
Panduit - FLCDSCBUY - Videos
| Panduit FLCDSCBUY Video 1 | Click to View |
|---|
