Brand: Panduit
|
SKU:
1035688
Panduit FLCS2/9SOCA9AG | Fiber Optic Connectors, Fusion Splice | UPC - 61305657400
Regular price
$271.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLCS2/9SOCA9AG | Fiber Optic Connectors, Fusion Splice | UP...
Regular price
$271.07
Unit price
Description
Description

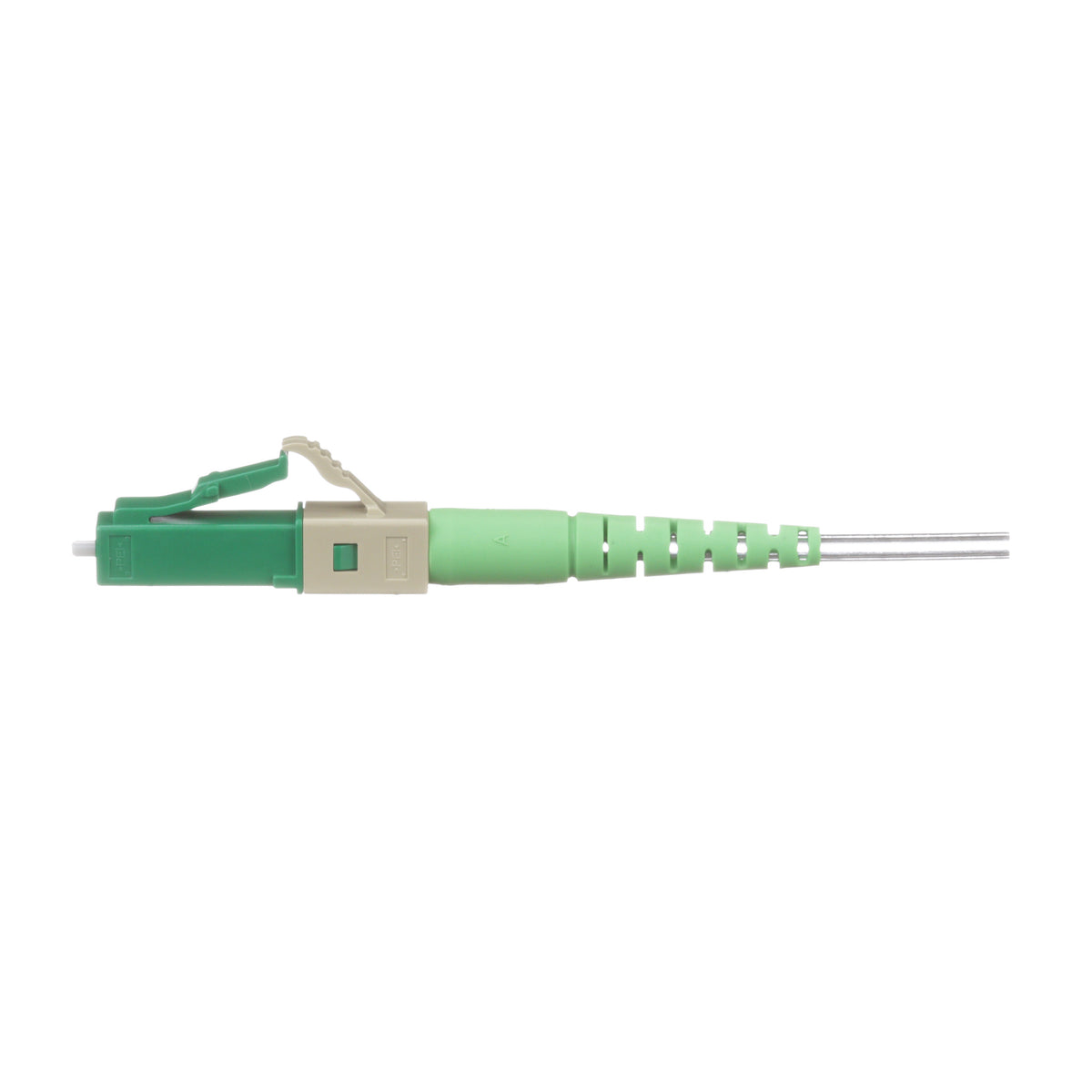

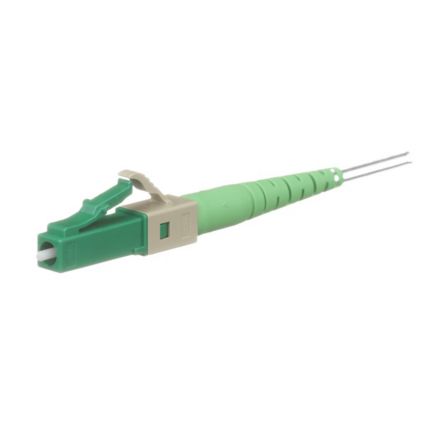

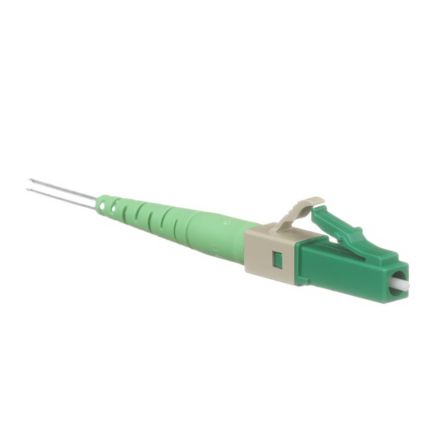

Panduit Fiber Optic Connector, Fusion Splice-On, LC Simplex Connector, 9/125 um OS1/OS2 Fiber, Zirconia Ceramic Ferrule, Green
Features + Benefits
- Quick installation - the LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two minutes per connector
- Reliable performance - superior components mean better performing links with less down time
- Superior function - factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
Panduit FLCS2/9SOCA9AG | Fiber Optic Connectors, Fusion Splice | UPC - 61305657400 Key Specs
| Polish Type | Pre-Polished |
| Fiber Type | OS1/OS2 |
| Connection Type | LC |
| Application | Used for initial installation of fiber links, MAC work, or repairs to existing links to minimize downtime. |
| Body Style | Simplex |
| Color | Green |
| Boot Color | Green |
| Backbone Color | Green |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 65 |
Panduit FLCS2/9SOCA9AG | Fiber Optic Connectors, Fusion Splice | UPC - 61305657400 Data Sheets
| Product Bulletins | Fusion Splice-On Connectors: D-FBCB44--SA-ENG | Download and View |
| Technology Briefs | Panduit Fiber Splice-On Connectors | Download and View |
| Part Drawings | Fiber LC Splice-On Connector For 250/900Um Fiber | Download and View |
Panduit FLCS2/9SOCA9AG | Fiber Optic Connectors, Fusion Splice | UPC - 61305657400 Environmental Information
| Panduit's RoHS Statement | Download and View |
