Panduit FLCS2/9SOCA9AG | Fusion Splice LC-APC Simplex 9µm OS1/2 Con...
Description
Description

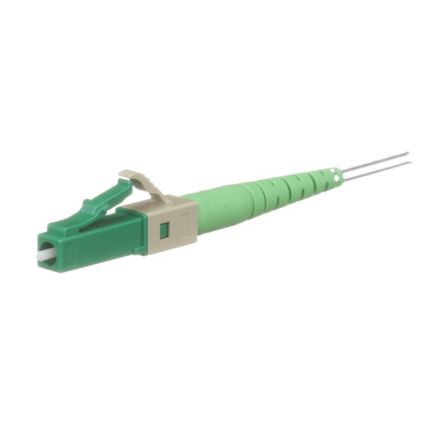

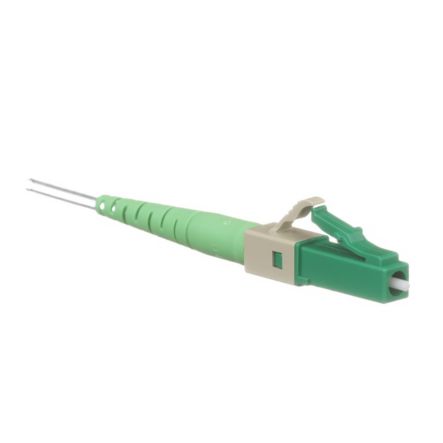

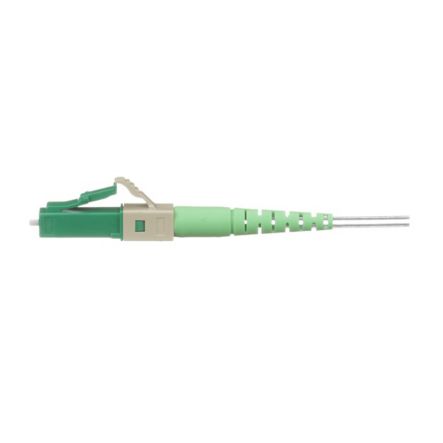

The Fusion Splice LC-APC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900?m tight-buffered or 250?m loose-tube fiber installation. Field termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, and a splice protection sleeve.
Panduit FLCS2/9SOCA9AG - CONN LC - FIBER LC-APC SPLICE-ON
Specifications
Specifications
Panduit - FLCS2/9SOCA9AG - Product Categories
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FLCS2/9SOCA9AG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCS2/9SOCA9AG |
| Item Description | Fusion Splice LC-APC Simplex 9µm OS1/2 Connector |
| Polish Type | Pre-Polished |
| Fiber Type | OS1/OS2 |
| Connection Type | Fusion Splice LC |
| Application | Used for initial installation of fiber links, MAC work, or repairs to existing links to minimize downtime. |
| Body Style | Simplex |
| Color | Green |
| Boot Color | Green |
| Backbone Color | Green |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 65 |
| Standards Met | RoHS compliant. Exceed TIA/EIA-568-B.3 requirements. TIA/EIA-604 FOCIS-10 |
| Product Type | Fiber Optic Connectors, Fusion Splice |
Panduit - FLCS2/9SOCA9AG - Package Information
| UPC | 61305657400 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.2728 |
