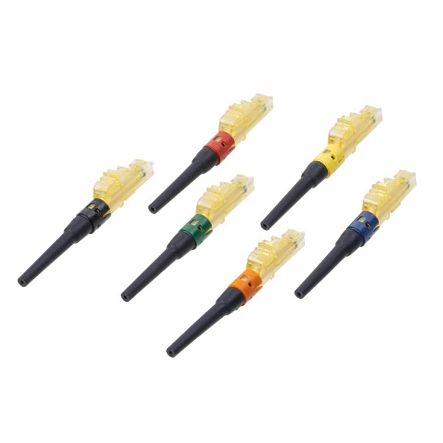

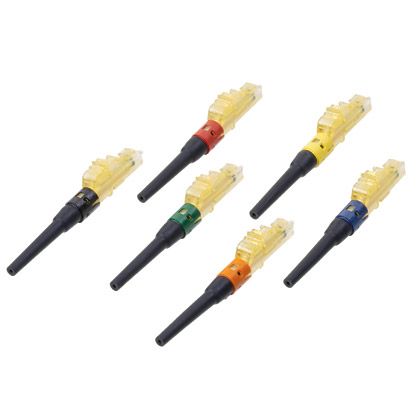

Panduit FLCSMC5ABL | OptiCam Fiber Optic Connectors, Keyed LC OptiCam
Regular price
$25.49
Unit price
Description
Description
Panduit FLCSMC5ABL | OptiCam Fiber Optic Connectors, Keyed LC OptiCam
Pre-Polished Keyed LC Simplex OptiCam OM2 Connector (Keyed A, Black) with 900um Black boot
Panduit FLCSMC5ABL Pre-polished Keyed Lc Simplexopticam Om2 Connector (keyeda, Black) With
Specifications
Specifications
Panduit - FLCSMC5ABL - Product Categories
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FLCSMC5ABL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCSMC5ABL |
| Item Description | OptiCam Fiber Optic Connectors, Keyed LC OptiCam |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM2 |
| Connection Type | Keyed LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fields. |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | Exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Connectors, Keyed LC OptiCam |
Panduit - FLCSMC5ABL - Package Information
| UPC | 07498301527 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1755 |
