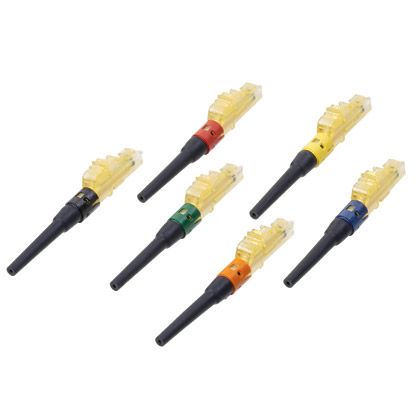

Panduit FLCSMC6DYL | OptiCam Keyed LC Simplex, 62.5µm OM1, Keyed D: Yellow with Black Boot

Panduit - FLCSMC6DYL - Features

• Color specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non-keyed ports, allow network design flexibility and versatility and accommodate more discrete networks
• Factory pre-polished fiber stub endface eliminates inconsistent and time consuming field polishing to deliver required optical performance
• Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
• Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
• Translucent housing assembly facilitates inspection of the fiber termination quality, resulting in rapid installations, improved termination yields and lower installed costs
• Laser marked to identify fiber stub fiber type (9 um, 62.5, 50 or 50X)
• Non-optical disconnect design maintains data transmission under tensile loads for jacketed cable
• Universal termination tool with integrated visual termination indicator ensures fast, consistent and optimal terminations of all OptiCam connectors with connector specific cradles
• Spring loaded senior rear pivot latch LC connector
• Quick installation provide field termination in less than half the time of field polish connectors
• Patented re-termination capability provides yield rates approaching 100%
• Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
• Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention less sensitivity to fiber tensile loading
• OptiCam termination tool simplifies tooling and termination and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed
• Cable retention boot assemblies consistently provide higher than industry standard cable retention
• Insertion loss 0.3 dB average (multi-mode and singlemode)
