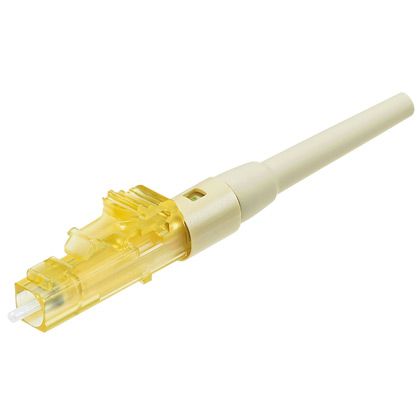

Panduit FLCSMC6EIY | OptiCam LC Simplex, 62.5µm OM1, with Electric ...
Description
Description
Cut your installation time in half with our LC pre-polished fiber optic connector. Ideal for fast repairs, data center connections, and tight spaces.
Pre-Polished LC Simplex OptiCam Style OM1 Connector, Natural Housing with 900um Electric Ivory Boot
Panduit OptiCam Fiber Optic Connector, Pre-Polished, Keyed LC Simplex Connector, OM1 62.5/125 um Multimode Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Plastic, Electric Ivory
Panduit - FLCSMC6EIY - Features
- Color specific keys with positive and negative keying features
- Factory pre-polished fiber stub endface
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non-optical disconnect design
- Universal termination tool with integrated visual termination indicator
Specifications
Specifications
Panduit - FLCSMC6EIY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCSMC6EIY |
| Connector Type | Lc |
| Fiber Type | Om1 Multimode |
| UNSPSC Code | 43223300 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM1 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Electric Ivory |
| Boot Color | Electric Ivory |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| UPC | 07498312704 |
Panduit - FLCSMC6EIY - Environmental Information
| RoHS Status | Not applicable |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FLCSMC6EIY Specification Sheet
- Panduit FLCSMC6EIY Catalog Cut Sheets
- Panduit FLCSMC6EIY Installation Documents
- Panduit FLCSMC6EIY Technical References
- Panduit FLCSMC6EIY Part Drawings
- Panduit FLCSMC6EIY Product Bulletins
- Panduit FLCSMC6EIY Part Drawings
- Panduit FLCSMC6EIY Manuals
- Panduit FLCSMC6EIY RoHS Statement
