Panduit FLCSMCXAQY-C | OptiCam LC Simplex, 50µm OM3/4/5, Aqua Boot ...
Description
Description

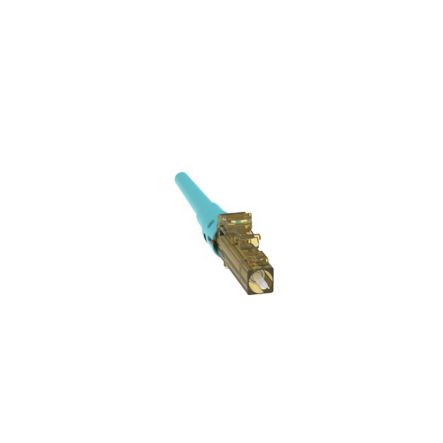

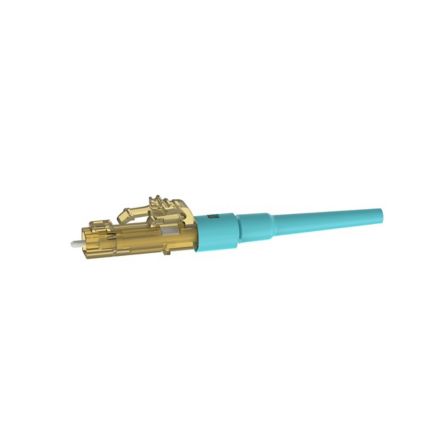

The OptiCam LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an aqua-colored backbone and 900?m boot, and is sold as a pack of 100.
LC OptiCam 10Gig(TM) 50/125µm OM3/OM4 Multimode Simplex Fiber Optic Connector for 900µm tight-buffered fiber installation.
Specifications
Specifications
Panduit - FLCSMCXAQY-C - Product Categories
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FLCSMCXAQY-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCSMCXAQY-C |
| Item Description | OptiCam LC Simplex, 50µm OM3/4/5, Aqua Boot (Pack of 100) |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM3/OM4/OM5 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Aqua |
| Boot Color | Aqua |
| Backbone Color | Aqua |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Standards Met | Exceed TIA/EIA-568-B.3 performance requirements |
| Product Type | Fiber Optic Connectors, LC OptiCam |
| Connector Type | LC |
| Fiber Type | MULTI MODE |
| UNSPSC Code | 43223300 |
Panduit - FLCSMCXAQY-C - Package Information
| UPC | 07498301736 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0504 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FLCSMCXAQY-C - Videos
| Video 1 | Click to View |
|---|
