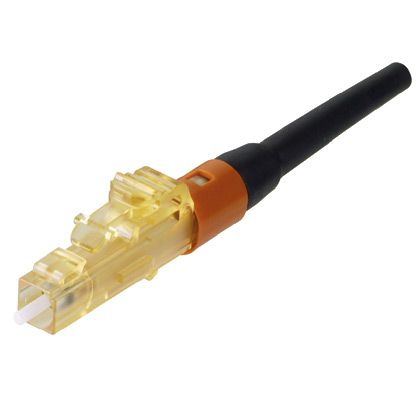

Panduit FLCSMCXEOR | OptiCam Keyed LC Simplex, 50µm OM3/4/5, Keyed E: Orange with Aqua Boot
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLCSMCXEOR | OptiCam Keyed LC Simplex, 50µm OM3/4/5, Keyed ...
Description
Description
Our keyed LC connector safeguards secure networks with color-coded protection, fast field termination, and no polishing needed. Ideal for fast repairs, data center connections, and tight spaces.
Pre-Polished Keyed LC Simplex OptiCam OM3/OM4 Connector (Keyed E, Orange) with 900um Aqua boot
Panduit OptiCam Fiber Optic Connector, Keyed E Pre-Polished Simplex, LC Connector, 10Gig 50/125 um OM3/OM4 Multimode Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Plastic, Orange
Panduit - FLCSMCXEOR - Features
- Color specific keys with positive and negative keying features
- Factory pre-polished fiber stub end face
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non optical disconnect design
- Universal termination tool with integrated visual termination indicator
Specifications
Specifications
Panduit - FLCSMCXEOR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCSMCXEOR |
| Connector Type | Lc |
| Fiber Type | Om3/Om4 Multimode |
| UNSPSC Code | 43223300 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM3/OM4/OM5 |
| Connection Type | Keyed LC Duplex |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fields. |
| Body Style | Simplex |
| Color | Orange |
| Boot Color | Black |
| Backbone Color | Orange |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| UPC | 07498306683 |
Panduit - FLCSMCXEOR - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
