Panduit FLCSSCBRD | OptiCam Keyed LC Simplex, 9µm OS1/2, Keyed B: R...
Regular price
$35.61
Unit price
Brand: Panduit
|
SKU:
500542
Regular price
$35.61
Unit price
Description
Description

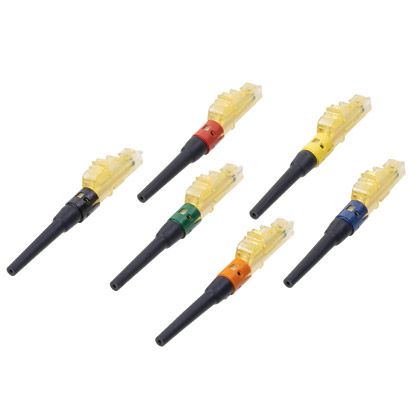

Panduit FLCSSCBRD | OptiCam Keyed LC Simplex, 9µm OS1/2, Keyed B: Red with Blue Boot
Our keyed LC connector safeguards secure networks with color-coded protection, fast field termination, and no polishing needed. Ideal for fast repairs, data center connections, and tight spaces.
Panduit OptiCam Fiber Optic Connector, Keyed B Pre-Polished Simplex, LC Connector, 9/125 um OS1/OS2 Single Mode Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Plastic, Red
Panduit - FLCSSCBRD - Features
- Color specific keys with positive and negative keying features
- Factory pre-polished fiber stub end face
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non optical disconnect design
- Universal termination tool with integrated visual termination indicator
Specifications
Specifications
Panduit - FLCSSCBRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCSSCBRD |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OS1/OS2 |
| Sub Brand | OptiCam |
| Application | Typical applications for Keyed LC OptiCam Connectors include maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fields. |
| Body Style | Simplex |
| Color | Red |
| Boot Color | Black |
| Backbone Color | Red |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| UPC | 07498306699 |
Panduit - FLCSSCBRD - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
