Brand: Panduit
|
SKU:
200043
Panduit FLRB Bracket, For 3/8"; Threaded Rod to 1 1/2"; to 2"; Ladder Rack, Fiber-Duct
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLRB Bracket, For 3/8"; Threaded Rod to 1 1/2"; t...
Regular price
$33.95
Unit price
Description
Description

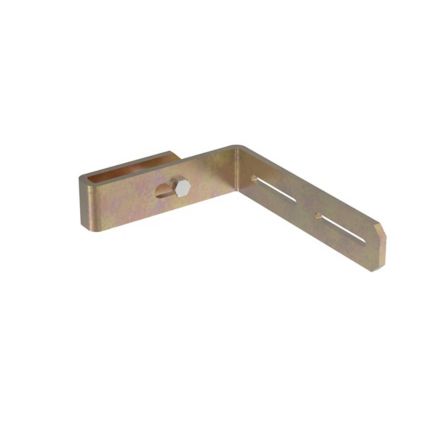

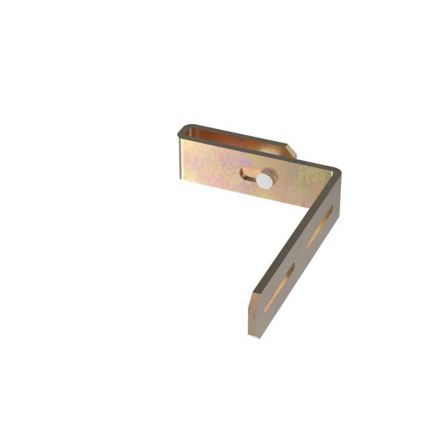

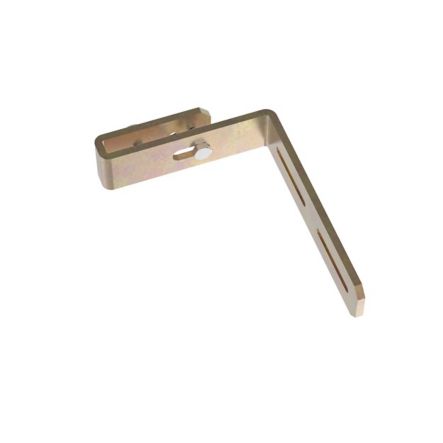

Panduit FLRB | Mounting Ladder Bracket for Fiber Pathways
The steel ladder bracket is used in cable routing systems to support the 2x2 and 4x4 FiberRunner Systems by directly attaching to any 0.375 inch H x 1.5 inch L (9.5mm x 38.1mm), or 0.375 inch H x 2 inch L (9.5mm x 50.8mm) ladder rack rails. It does not require a threaded rod. The ladder bracket includes hardware for mounting channel to bracket.
Specifications
Specifications
Panduit - FLRB - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FLRB - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLRB |
| Item Description | Mounting Ladder Bracket for Fiber Pathways |
| Application | (1) Comprised of channel, fittings, and brackets designed to segregate, route, and protect fiber optic cable and copper cabling. (2) It is suited for data center applications where cable is routed from distributionareas to equipment cabinets or racks. |
| Product Type | Ladder Rack |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Mounting Channel to Bracket |
| Includes | (1) Bracket Assembly, (2) #10-32x1/2 Pan Head Slotted Machine Screws, (2) #10-32 Hex Machine Screw Nuts, (2) #10 Helical Spring Lockwashers |
| Material | Steel |
| Number of Pieces | 7 |
| Overall Height (In.) | 4.57 |
| Overall Height (mm) | 116.1 |
| Overall Length (In.) | 6.56 |
| Overall Length (mm) | 166.6 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| Series Type | 2x2 and 4x4 Fiber-Duct Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FLRB - Package Information
| UPC | 07498362534 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0219 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.2191 |
