Panduit FOCRX06Y | 6 Fiber Cable, OM3, Indoor/Outdoor, Riser, 250µm
Description
Description
Speed up your network connections indoors or outdoors with our indoor/outdoor all-dielectric loose tube cable. Easy to install and water-resistant this cable protects high-speed data transmission.

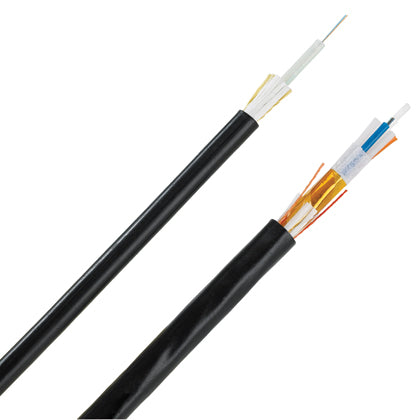

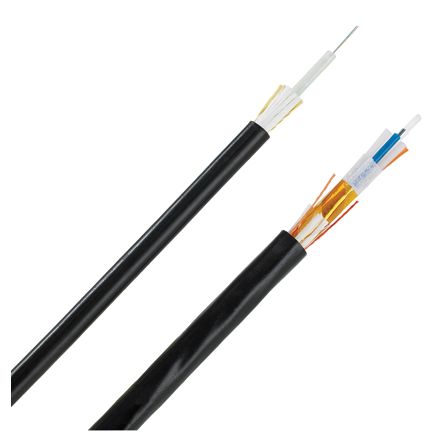

6-fiber 10Gig(TM) 50/125µm (OM3) multimode riser rated indoor/outdoor central cable.
Opti-Core Gel-Free Indoor/Outdoor Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. This riser rated or plenum rated cable provides UV resistance, water-blocking, high density and easy installation in transitional aerial and duct applications and entrance facilities. Opti-Core Gel-Free Indoor/Outdoor Cable is tested in accordance with Telcordia GR-20, Issue 2, GR-409 and with relevant EIA/TIA-455 series FOTPs for fiber optic cables. Opti-Core 10Gig Gel-Free Indoor/ Outdoor Cable features the highest quality OM3 laser optimized fiber to support 10 Gb/s applications while maintaining compatibility with existing 50 um multimode systems. Standard RoHS multimode and singlemode indoor/outdoor cables are available in 2, 4, 6 and 12 fiber and 12-fiber counts in a "central loose tube" design and in 24, 36, 48, 72, 96 and 144-fiber counts in a "stranded loose tube" design.
Panduit Opti-Core Dielectric Cable, Gel-Free Multi-Mode (OM3), 6 Fibers, PVC/PVDF, Black, -40 to 158 deg F
Panduit - FOCRX06Y - Features
- Allows installation using loose tube cable methods within buildings and outdoor environments for transitional aerial and duct applications, and in entrance facilities that require riser (OFNR) or plenum (OFNP) rated cable
- Eliminates the need for building entrance transition point
- All-dielectric cable construction requires no grounding or bonding
- UV resistant cable sheathing meets the light absorption requirement defined by telcordia GR-20, issue 2 to withstand harsh outdoor environmental demands
- Dry water-blocking technology allows rapid cable preparation and termination for lower termination costs and time (no messy gel required)
- Sheath markings provide positive identification, quality traceability, length verification and stranded tube design
- 300 lb tensile strength
- 0.256 in bend radius
- 10 GbE 50/125um fiber size
- Riser flame rating
- 0.31 in OD Cable
Specifications
Specifications
Panduit - FOCRX06Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FOCRX06Y |
| All-Dielectric | Yes |
| Armored | No |
| Cable Type | Loose Tube |
| Fiber Count | 6 |
| Fiber Type | Om3 Lazer-Optimized 50 Micron, 10 Gig To 300 Meter |
| Fire Rating | Riser |
| Rodent Protected | No |
| UNSPSC Code | 26121607 |
| Note | See Spec Sheet for Supporting Technical Information |
| Product Type | Bulk Fiber Optic Cable |
| Region | Americas |
| Environment | Indoor/Outdoor |
| Armor or Non-Armor | Non-Armored |
| Fiber Type | OM3 |
| Number of Fibers | 6 |
| Buffered, Loose Tube or Ribbon | 250?m Loose Tube |
| Flammability Rating | Riser (OFNR) |
| Cable Color | Black |
| Sub Brand | Opti-Core |
| UPC | 07498304829 |
