Panduit FODRX48Y | Distribution Cable | UPC - 07498304840
Description
Description

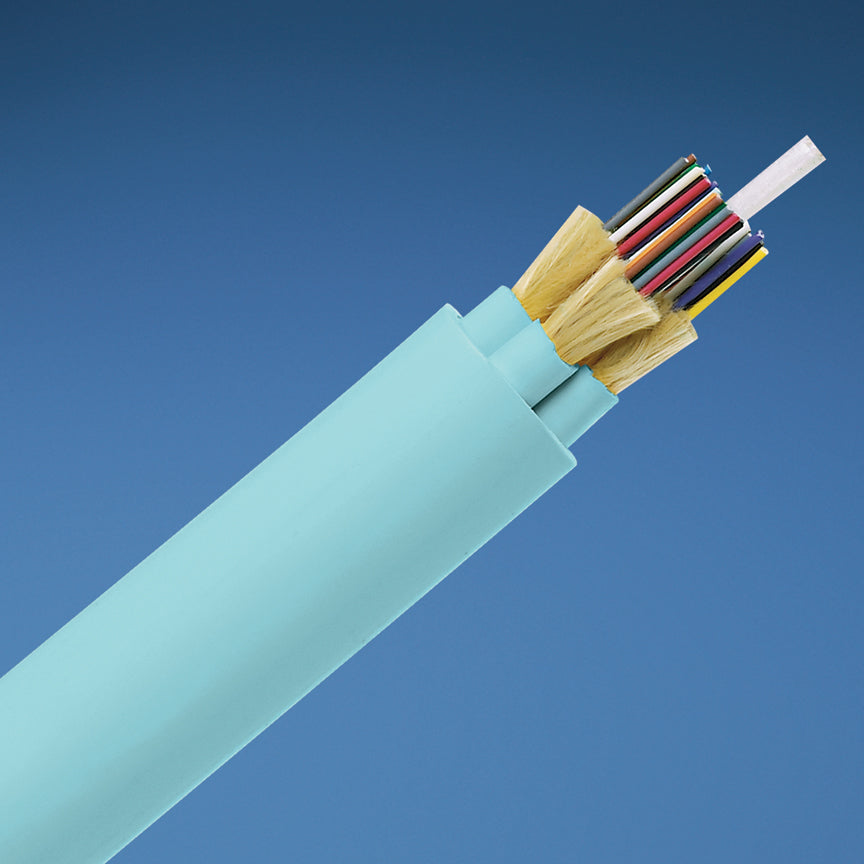

Opti-Core Fiber Optic Distribution Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever advancing network requirements. Opti-Core Fiber Optic Distribution Cable is used within buildings to provide high-density connectivity and ease of installation. Applications include intra building backbones, routing between telecommunications rooms and connectorized cables in riser and plenum environments.
Panduit Opti-Core Distribution Cable, Multi-Mode (OM3), 48 Fibers, PVC, Aqua, -4 to 158 deg F
Features + Benefits
- Sheath markings provide positive identification, quality traceability and length verification
- Cable design and flexible buffer tubes allow for quick breakout and ease of routing
- 900 um standards-based color-coded buffer coating protects fibers during handling and allows for easy identification and stripping
- Opti-Core 10Gig fiber optic cable is designed to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters for OM3 and up to 550 meters for OM4 with an 850nm source per IEEE 802.3ae 10 GbE standard
- Backward compatible for use with all 50/125um system requirements
- Multimode riser rated distribution cable, four subunits of twelve fibers each
- 300 lb tensile strength
- 12.8 in bend radius
- OM3 10 GbE 50/125m fiber size
- 0.63 in OD cable
Panduit FODRX48Y | Distribution Cable | UPC - 07498304840 Key Specs
| Note | FODRX48Y replaces FODRX48 |
| Cable Construction | Distribution |
| Sub Brand | Opti-Core |
| Environment | Indoor |
| Fiber Type | OM3 |
| Number of Fibers | 48 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.63 |
| Outer Diameter (mm) | 16 |
| Bend Radius (In.) | 12.6 |
| Bend Radius (mm) | 320 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Data Transfer Rate (Gb/s) | 10 |
Panduit FODRX48Y | Distribution Cable | UPC - 07498304840 Data Sheets
| Installation Documents | Installation Instructions/Best Practices - PN447B | Download and View |
| Technical References | Multimode Optical Fiber TR2 OM2, Laser Optimized OM3, OM4 and Signature Core | Download and View |
| Data Sheets | Opti-Core Fiber Optic Distribution Cable: FBDS17 | Download and View |
Panduit FODRX48Y | Distribution Cable | UPC - 07498304840 Environmental Information
| Panduit's RoHS Statement | Download and View |
