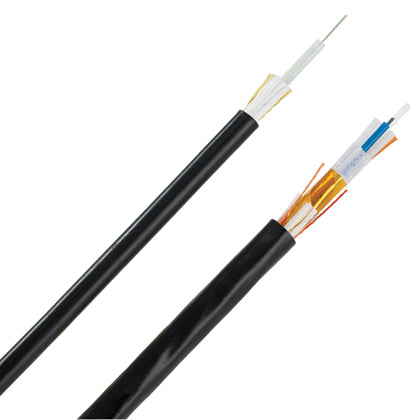

Panduit FONRX24Y | Indoor/Outdoor Stranded Loose Tube | UPC - 07498...
Description
Description
Opti-Core Gel-Free Indoor/Outdoor Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. This riser rated or plenum rated cable provides UV resistance, water-blocking, high density and easy installation in transitional aerial and duct applications and entrance facilities. Opti-Core Gel-Free Indoor/Outdoor Cable is tested in accordance with Telcordia GR-20, Issue 2, GR-409 and with relevant EIA/TIA-455 series FOTPs for fiber optic cables. Opti-Core 10Gig Gel-Free Indoor/ Outdoor Cable features the highest quality OM3 laser optimized fiber to support 10 Gb/s applications while maintaining compatibility with existing 50 um multimode systems. Standard RoHS multimode and singlemode indoor/outdoor cables are available in 2, 4, 6 and 12 fiber and 12-fiber counts in a "central loose tube" design and in 24, 36, 48, 72, 96 and 144-fiber counts in a "stranded loose tube" design.
Panduit Opti-Core Dielectric Cable, Gel-Free Multi-Mode (OM3), 24 Fibers, PVC/PVDF, Black, -40 to 158 deg F
Features + Benefits
- Allows installation using loose tube cable methods within buildings and outdoor environments for transitional aerial and duct applications, and in entrance facilities that require riser (OFNR) or plenum (OFNP) rated cable
- Eliminates the need for building entrance transition point
- All-dielectric cable construction requires no grounding or bonding
- UV resistant cable sheathing meets the light absorption requirement defined by telcordia GR-20, issue 2 to withstand harsh outdoor environmental demands
- Dry water-blocking technology allows rapid cable preparation and termination for lower termination costs and time (no messy gel required)
- Sheath markings provide positive identification, quality traceability, length verification and stranded tube design
- 600 lb tensile strength
- 0.398 in bend radius
- 10 GbE 50/125um fiber size
- Riser flame rating
- 0.4 in OD Cable
Panduit FONRX24Y | Indoor/Outdoor Stranded Loose Tube | UPC - 07498304875 Key Specs
| Note | FONRX24Y replaces FONRX24 |
| Cable Construction | Indoor/Outdoor Loose Tube |
| Sub Brand | Opti-Core |
| Environment | Indoor/Outdoor |
| Fiber Type | OM3 |
| Number of Fibers | 24 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.4 |
| Outer Diameter (mm) | 10.2 |
| Bend Radius (In.) | 8 |
| Bend Radius (mm) | 203.2 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -30 |
| Minimum Installation Temperature (°F) | -22 |
| Maximum Installation Tension (lb) | 600 |
Panduit FONRX24Y | Indoor/Outdoor Stranded Loose Tube | UPC - 07498304875 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - FOCRZ06Y Product Page | Download and View |
| Part Drawings | Part Drawings - PDF - FSNR924Y | Download and View |
| Installation Documents | Wire Mesh Pulling Grips for Fiber Optic Cable Best Practices: FS080 | Download and View |
Panduit FONRX24Y | Indoor/Outdoor Stranded Loose Tube | UPC - 07498304875 Environmental Information
| Panduit's RoHS Statement | Download and View |
