Panduit FOPRZ12Y | Indoor Interlocking Armored Cable | UPC - 074983...
Description
Description

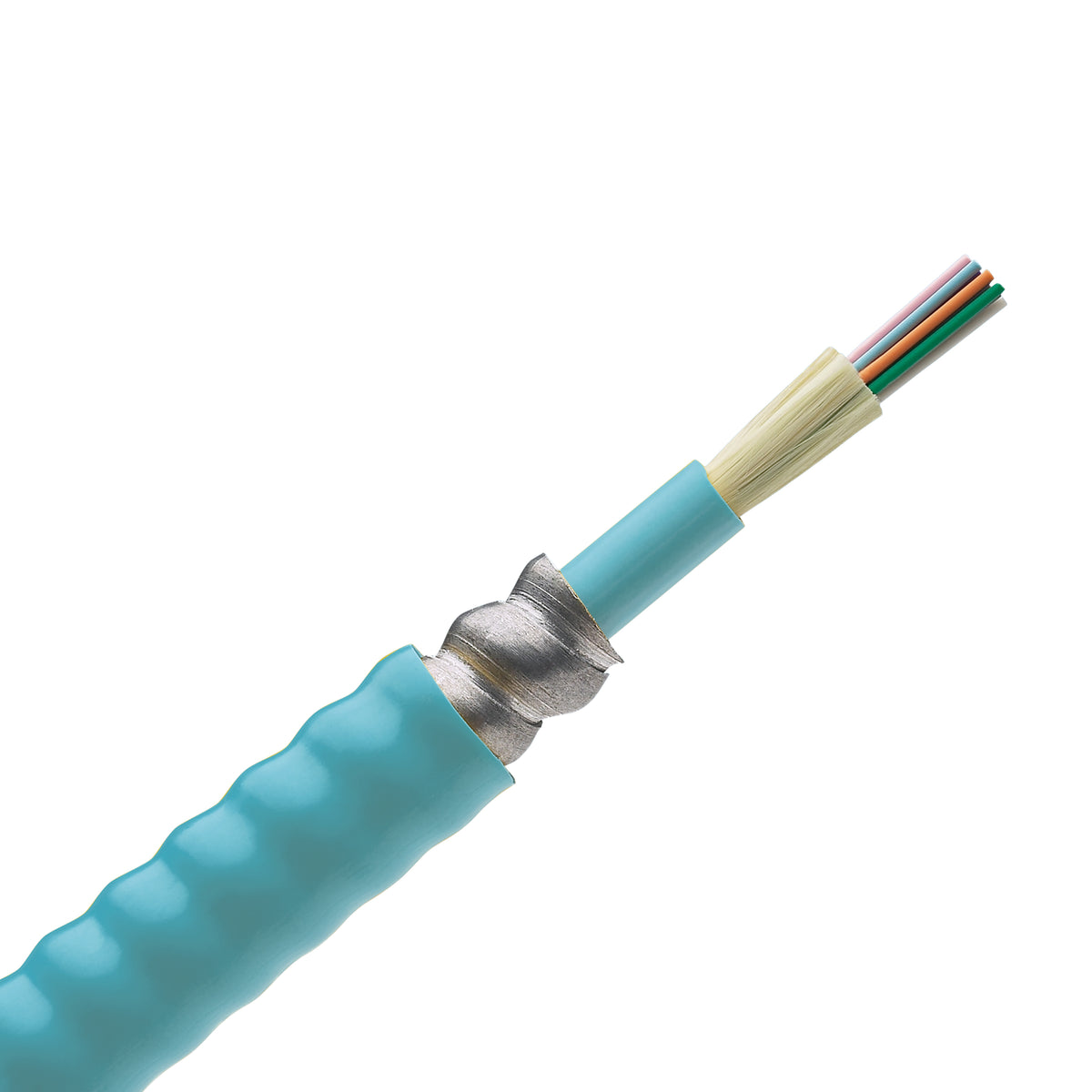

Panduit Opti-Core fiber optic indoor interlocking armored cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. Opti-Core fiber optic indoor interlocking armored cable is used within buildings to provide high-density connectivity and ease of installation.
Panduit Opti-Core Armored Cable, Interlocking, 12 Fibers, PVC Jacket, Aqua Jacket, -40 to 167 deg F
Features + Benefits
- Interlocking aluminum armor eliminates the need for inner duct or conduit to provide a smaller crush resistant pathway for improved design flexibility and lower installed cost
- Opti-Core 10Gig fiber optic indoor interlocking armored cable features the highest quality OM3 and OM4 laser optimized fiber to support 10 Gb/s applications while maintaining compatibility with existing 50um multimode systems
- OM4 10 GbE multimode riser rated indoor interlocking aluminum armored cable
Panduit FOPRZ12Y | Indoor Interlocking Armored Cable | UPC - 07498320643 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Cable Construction | Interlocking Armored |
| Sub Brand | Opti-Core |
| Environment | Indoor |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 15.8 |
| Bend Radius (In.) | 5.7 |
| Bend Radius (mm) | 145 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Data Transfer Rate (Gb/s) | 10 |
Panduit FOPRZ12Y | Indoor Interlocking Armored Cable | UPC - 07498320643 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - FOPRZ06Y Product Page | Download and View |
| Part Drawings | Part Drawings - PDF - FSPR912Y | Download and View |
| Line Cards | Line Card - 40G-100G Just The Facts - 100410 a | Download and View |
Panduit FOPRZ12Y | Indoor Interlocking Armored Cable | UPC - 07498320643 Environmental Information
| Panduit's RoHS Statement | Download and View |
