Brand: Panduit
|
SKU:
DRC-029373

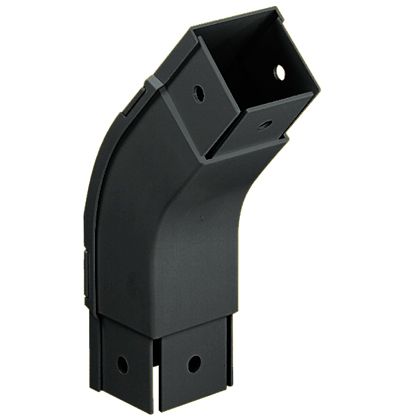

Panduit FOV452X2BL | Fiber-Duct Angled Fitting
Regular price
$84.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FOV452X2BL | Fiber-Duct Angled Fitting
Regular price
$84.17
Unit price
Description
Description
Panduit FOV452X2BL | Fiber-Duct Angled Fitting
2 x 2 Fiber-Duct Fitting. Attaches to channel to create a 45° downward angle from a straight horizontal run. Used with inside vertical 45° angle fitting FIV452X2BL or FIV454X4BL to change level of straight horizontal runs. Cover included.
Specifications
Specifications
Panduit - FOV452X2BL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FOV452X2BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FOV452X2BL |
| Item Description | Fiber-Duct Angled Fitting |
| Application | Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic Jumper Cab |
| Product Type | Angled Fitting |
| Sub Brand | Fiber-Duct |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Black |
| Fitting Type | Outside Vertical 45° Fitting |
| Fitting Material | ABS |
| For Use With | 2x2 |
| Material | ABS |
| Overall Height (In.) | 4.65 |
| Overall Height (mm) | 118.1 |
| Overall Length (In.) | 2.65 |
| Overall Length (mm) | 67.3 |
| Overall Width (In.) | 7.85 |
| Overall Width (mm) | 199.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) slotted wall CSA Certified (File No. 016446 0 000) slotted wall |
| System Dimensions | 2x2 |
Brand Name - FOV452X2BL - Package Information
| UPC | 07498367582 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0839 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.4196 |
