Brand: Panduit
|
SKU:
10057484
Panduit FOVRA2X2LYL | FIBERRUNNER OUTSIDE 45 DEGREE ANGLE, YELLOW
Regular price
$142.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FOVRA2X2LYL | FIBERRUNNER OUTSIDE 45 DEGREE ANGLE, YELLOW
Regular price
$142.40
Unit price
Description
Description
Panduit FOVRA2X2LYL | FIBERRUNNER OUTSIDE 45 DEGREE ANGLE, YELLOW

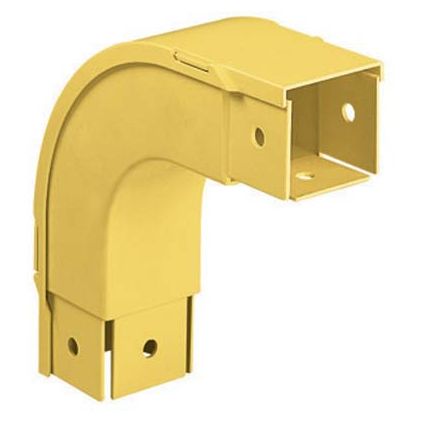

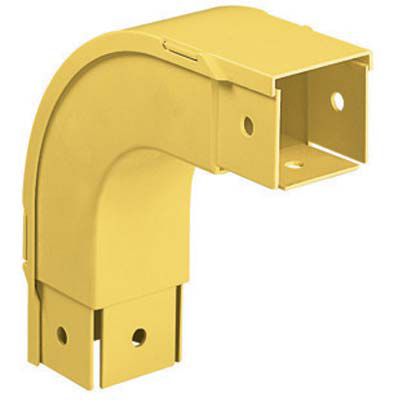

The FiberRunner Outside Vertical attaches to a channel to create a 90° downward angle from a straight horizontal run. It is used with inside vertical 90° angle fitting FIVRA2X2LYL to change the level of a straight horizontal run.
Panduit FOVRA2X2LYL Fitting And Cover, Outsidevert. 90o, 2"x2"50mmx50mm Yl Lszh
Specifications
Specifications
Panduit - FOVRA2X2LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FOVRA2X2LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FOVRA2X2LYL |
| Item Description | FIBERRUNNER OUTSIDE 45 DEGREE ANGLE, YELLOW |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| For Use With | 2x2 Fiber Routing System |
| Material | PC/ABS |
| Overall Height (In.) | 6.94 |
| Overall Height (mm) | 176.3 |
| Overall Length (In.) | 2.65 |
| Overall Length (mm) | 67.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 2x2 |
| Channel | SINGLE |
| Components | DEVICE / JUNCTION / OUTLET BOX |
| Type | NON-METALLIC |
| UNSPSC Code | 39131709 |
Panduit - FOVRA2X2LYL - Package Information
| UPC | 61305676750 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0370 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.1850 |
Panduit - FOVRA2X2LYL - Videos
| Video 1 | Click to View |
|---|
