Panduit FP2DCIW | Screw-On 106 Duplex Faceplate
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
243809
Regular price
$9.28
Unit price
Description
Description

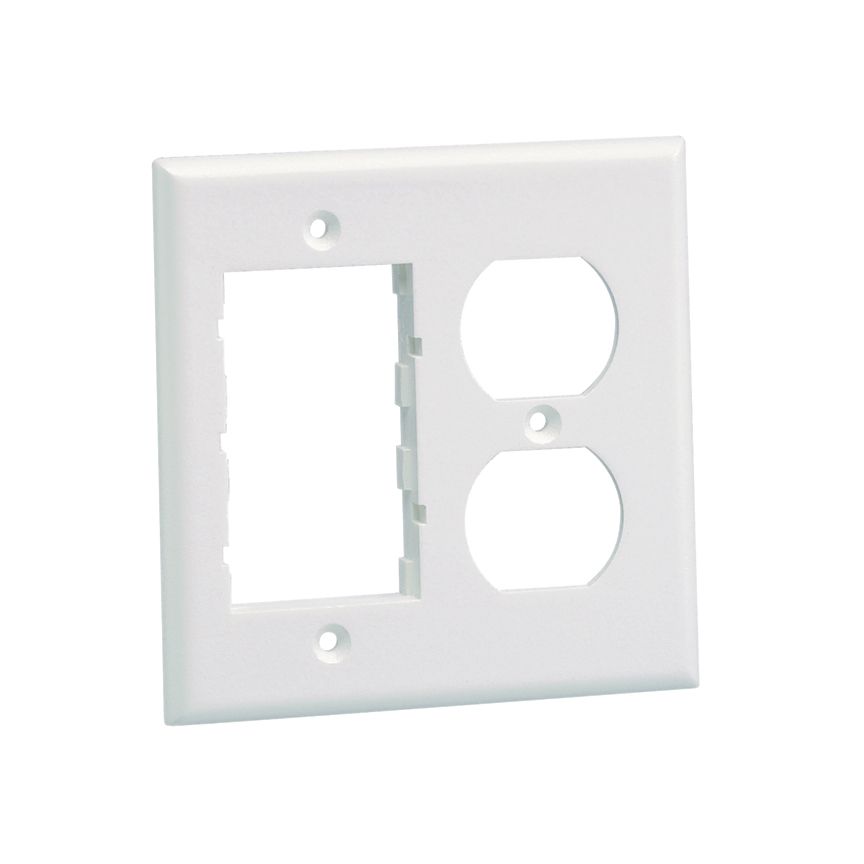

Panduit FP2DCIW | Screw-On 106 Duplex Faceplate
Covers one NEMA standard 106 duplex electrical receptacle and accepts PANDUIT Mini-Com 1/2-size, 1/3-size, and 2/3-size Inserts. For product application, please reference LD profile raceway section, Off White.
Panduit FP2DCIW | FACEPLATE | 2-PORT FLUSH MT UNLOADED
Specifications
Specifications
Panduit - FP2DCIW - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Snap-On Faceplates
Panduit - FP2DCIW - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FP2DCIW |
| Item Description | Screw-On 106 Duplex Faceplate |
| Product Type | Screw-On 106 Duplex Faceplate |
| Color | Off-White |
| Gang Opening Type | Double Gang |
| Material | ABS |
| Standards Met | CSA 22.2 No.62-93; UL5A Listed; RoHS Compliant |
| Number of Ports | 2 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 114.3 |
| Application | Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring |
Panduit - FP2DCIW - Package Information
| UPC | 07498372254 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0170 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1700 |
