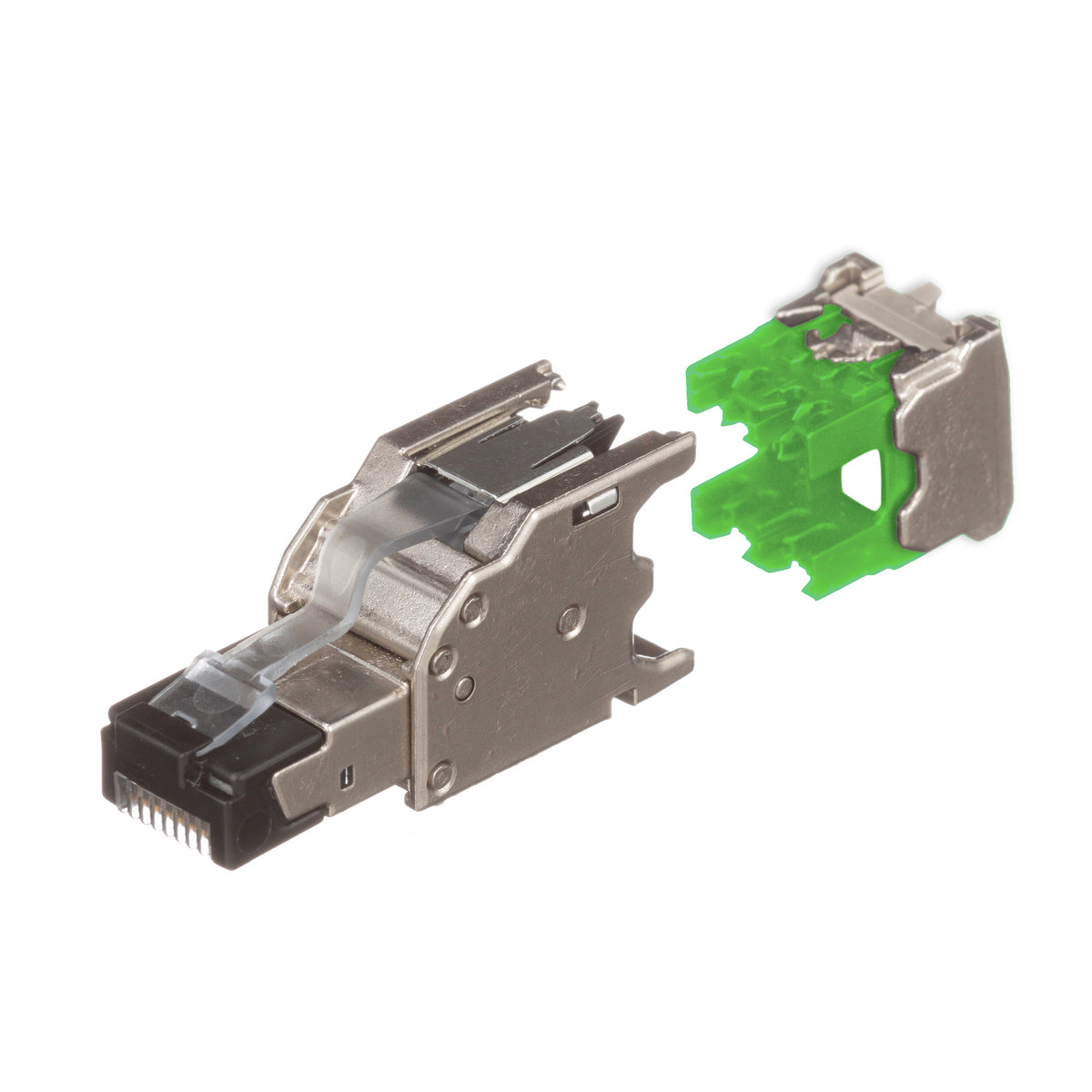

Panduit FPE6X88MTG | Shielded Field Term Plug | UPC - 61305658014

PROFINET Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 2-pair shielded twisted pair cable. Providing Category 5e performance the IndustrialNet PROFINET plug is terminates 2-pair, 22 AWG, 100 ohm shielded twisted pair cable compatible with PROFINET shielded systems.

---

Panduit FPE6X88MTG Key Specs

Product Type	Shielded Field Term Plug
Performance Level	Category 5e
Connector Type	Field Terminable Plug
Body Material	Die Cast
Contact Material	Phosphor Bronze
Wiring Scheme	T568B
Shield Type	Shielded (STP)
Overall Width (In.)	0.54
Overall Width (mm)	13.6
Overall Height (In.)	0.71
Overall Height (mm)	18
Overall Depth (In.)	1.83
Overall Depth (mm)	46.4
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Compatible Wire Gauge (AWG)	22
Color	Silver
Standards Met	Exceeds ANSI/TIA 568.2-D Category 5e and ISO 11801 Class EA hannel performance requirements with up to two field term plugs in channel.
IP Rating	IP20
Sub Brand	IndustrialNet
Part Features	Designed specifically for 2-pair, 22AWG PROFINET cable applications ; TG-style termination allows for easy termination, up to 10 re-terminations
