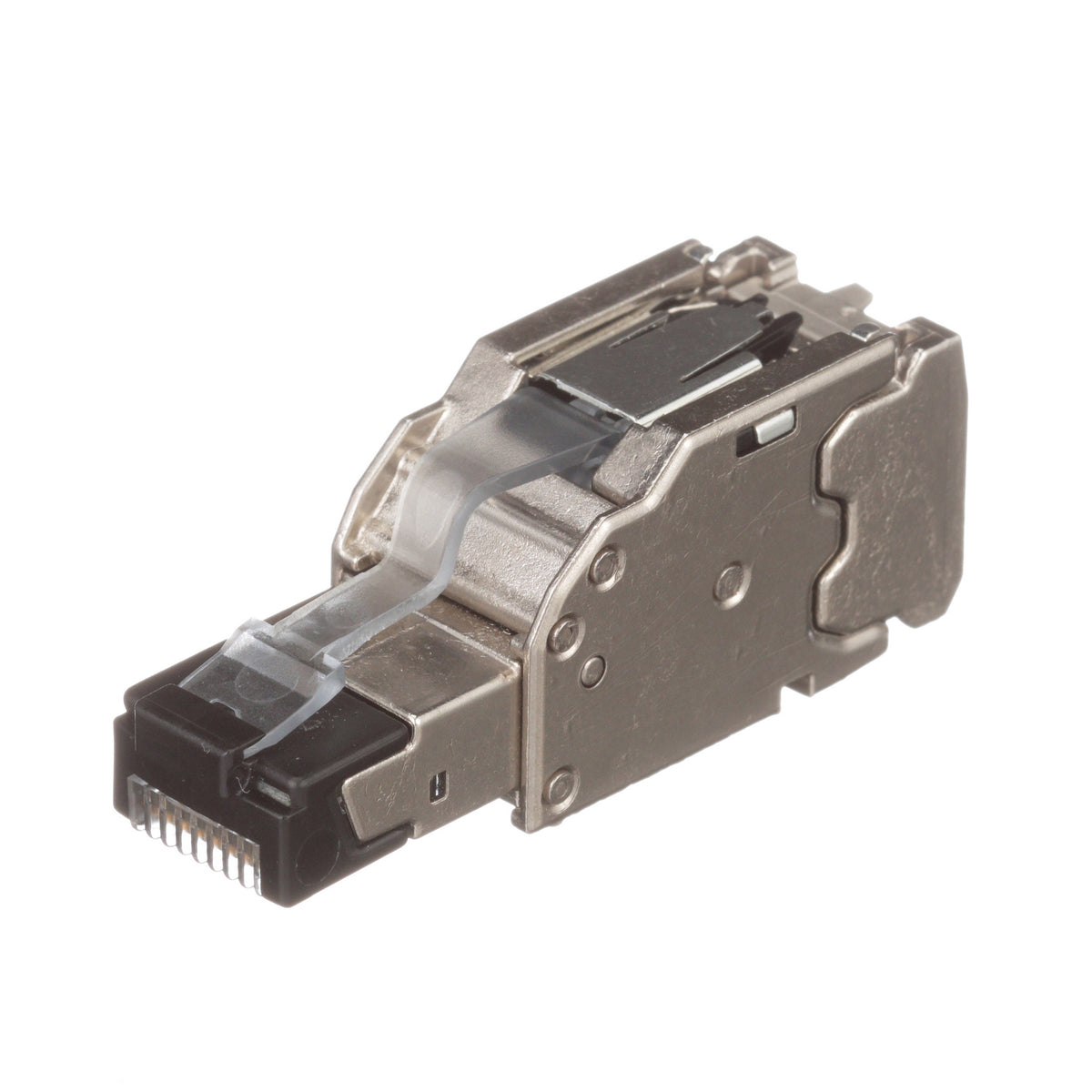

Panduit FPS6X88MTG-X | Shielded Field Term Plug | UPC - 61305657991
Description
Description
The IndustrialNet TX6A Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 4-pair shielded twisted pair cable. Providing Category 6A performance the TX6A plug is also compatible with Category 6 and 5e shielded systems. The two-piece straight TX6A shielded plug terminates 4-pair, 22 to 26 AWG, 100 Ohm shielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.
Panduit PanNet IndustrialNet TX6A Mini-Com Field Term Plug, Cat 6A Shielded 2-Piece, Twisted Pair Cable, 0.23 to 0.35 in Cable Outer Dia, RJ45 Conductor, 26 to 22 AWG Conductor, TG Style Termination, -40 to 185 deg F, Silver, 0.54 in W x 0.71 in H
Features + Benefits
- Simple 2-piece assembly - field friendly, easier to handle during field installation, saving time and reducing termination error
- Slim plug profile - easily fits in tight port spaces or high-density port configurations
- 22 to 26 AWG termination capable - works with all commonly used solid and stranded shielded cabling
- TG-style termination technology - proven electrical performance and quick installation speed from the same forward-motion termination technology used in the Panduit Mini-Com TG modular jacks
- Category 6A, 6 and 5e compatibility - high performance capability and wide cable size range enable a single plug for all common shielded cabling systems
- Re-termination - ability to re-terminate up to 20 times with no additional parts, providing convenience and cost-savings in cases when plug must be re-terminated to cable
- Compact termination tools - EGPT is fold-able and lightweight
Panduit FPS6X88MTG-X Key Specs
| Product Type | Shielded Field Term Plug |
| Performance Level | Category 6A |
| Connector Type | Field Terminable Plug |
| Body Material | ABS |
| Contact Material | Phosphor Bronze |
| Wiring Scheme | T568B |
| Shield Type | Shielded (STP) |
| Overall Width (In.) | 0.54 |
| Overall Width (mm) | 13.6 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Compatible Wire Gauge (AWG) | 22-26 |
| Color | Silver |
| Sub Brand | Pan-Net |
Panduit FPS6X88MTG-X Data Sheets
| Part Drawings | TX6A Field Terminable STP RJ45 Plug W/ Straight Wire Cap Assembly | Download and View |
| Specification Sheets | IndustrialNet TX6A Shielded Field Term RJ45 Plug | Download and View |
| Installation Documents | Field Term Plug Installation Guidelines | Download and View |
| Application Guides | Panduit TX6A UTP and STP Field Term Plug & Direct Connect Cabling Systems | Download and View |
| Technology Briefs | TX6A UTP and Shielded Field Term Plugs & Direct Cabling Systems | Download and View |
