Panduit FPS6X88TC | Test Cord For Field Term Plug, Cat 6A, Stp, Red
Regular price
$56.14
Unit price
Brand: Panduit
|
SKU:
9846749
Regular price
$56.14
Unit price
Description
Description
Panduit FPS6X88TC | Test Cord For Field Term Plug, Cat 6A, Stp, Red
Panduit FPS6X88TC | PATCHCORD CAT5E | PROFINET CATEGORY 5E SHIELDED

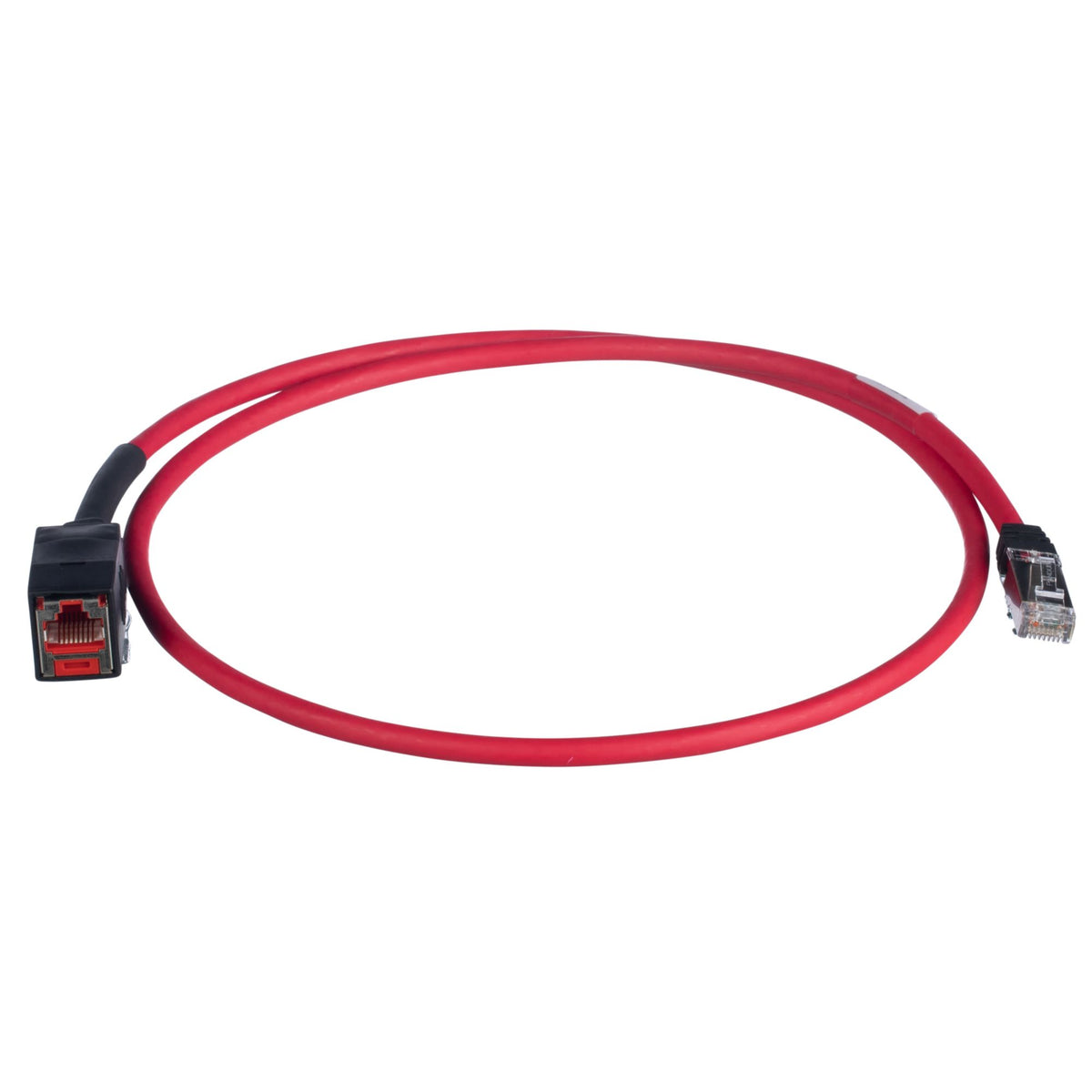

The STP Test Cord is used to test permanent link performance of Modular Plug Terminated Links (MPTL) per standards. The cord has a shielded, red, Category 6A jack module on one end and a shielded Category 6A modular plug on the other end. The cord is 1 meter in length, is CM rated, and is red.
Specifications
Specifications
Panduit - FPS6X88TC - Product Categories
- Copper Systems
- Modular Plugs
Panduit - FPS6X88TC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FPS6X88TC |
| Item Description | Test Cord For Field Term Plug, Cat 6A, Stp, Red |
| Product Type | MPTL Test Cord (STP) |
| Performance Level | Category 6A |
| Connector 1 Type | Modular Plug |
| Number of Plugs | 1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Color | Red |
| Standards Met | Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), RoHS Compliant |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Sub Brand | Pan-Net |
Panduit - FPS6X88TC - Package Information
| UPC | 61305665110 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2397 |
Panduit - FPS6X88TC - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
