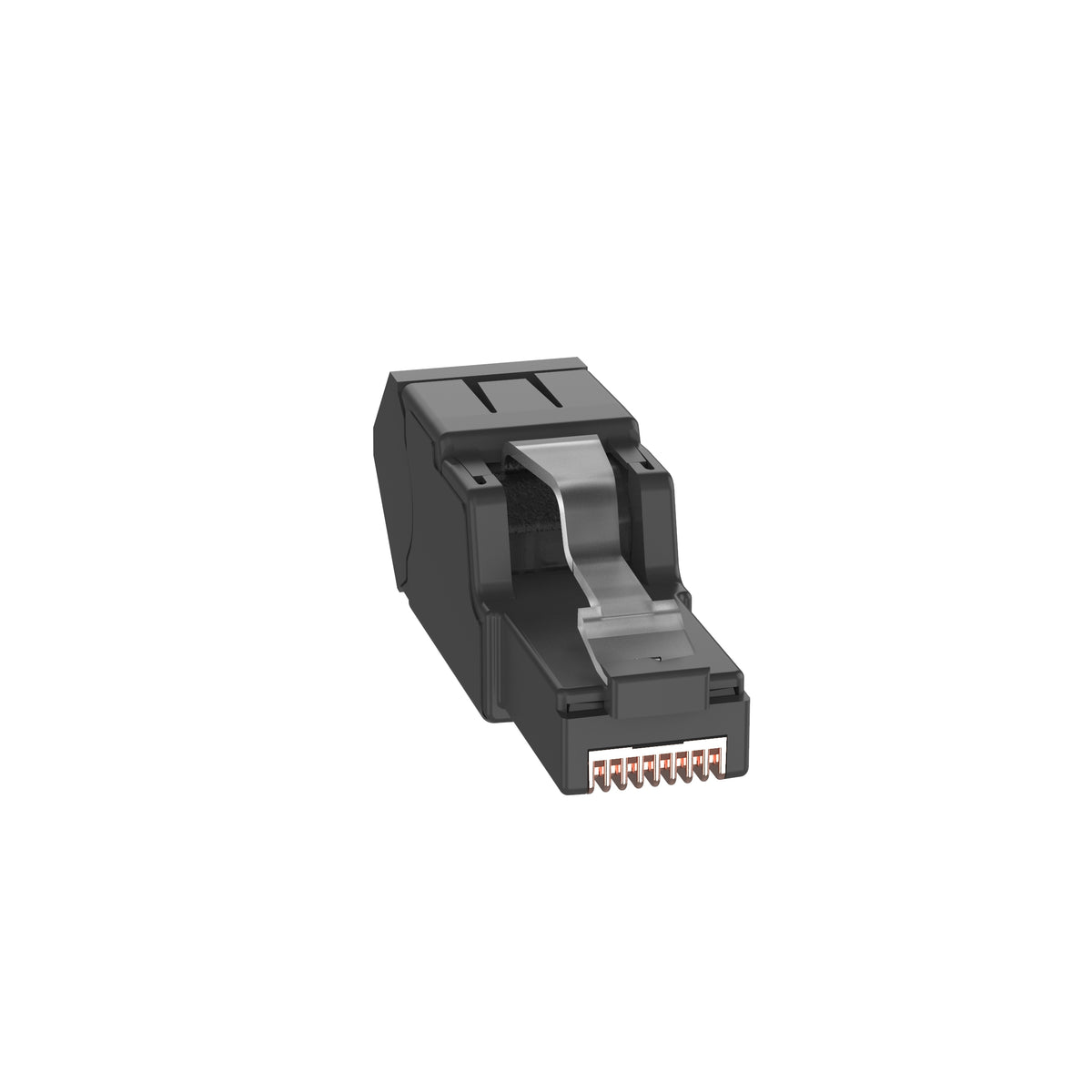

Panduit FPUD6X88MTG | Modular Plug | UPC - 61305636612
Description
Description
The TX6A cat 6a utp field term RJ45 plug is a simple-to-attach plug for field termination of 4-pair unshielded twisted pair cable. Providing cat 6a performance the TX6A plug is also compatible with Cat 6 and 5e systems. The 2-piece straight and up/down angled TX6A plug terminates 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and uses proven TG style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.
Panduit Pan-Plug TX6A UTP Modular Plug, Angled Field Terminable UTP, Polycarbonate, Black, 2.1 in L x 0.53 in W x 0.62 in H Dimensions
Features + Benefits
- Field friendly, easier to handle during field installation, saving time and reducing termination error
- Angled version allows improved cable routing in tight spaces
- Easily fits in tight port spaces or high density port configurations
- Works with all commonly used solid and stranded UTP cabling
- Proven electrical performance and quick installation speed from the same forward motion termination technology used in Panduit Mini-Com TG modular jacks
- High performance capability and wide cable size range enable a single plug for all common UTP cabling systems
- Ability to re-terminate up to 20 times with no additional parts, providing convenience and cost savings in cases when plug must be re-terminated to cable
- EGPT is a foldable, lightweight tool which terminates the straight and angled field term plugs, EGJT-1 is a foldable, lightweight tool which terminates the straight field term plug
- Field term RJ45 plug is a simple to attach plug for field termination and easy routing of 4-pair unshielded twisted pair cable
- Cat 6a performance, also compatible with Cat 6 and 5e systems
Panduit FPUD6X88MTG Key Specs
| Product Type | Modular Plug |
| Performance Level | Category 6A |
| Connector Type | Field Terminable Plug |
| Body Material | Polycarbonate |
| Contact Material | Phosphor Bronze |
| Number of Plugs | 1 |
| Overall Length (In.) | 2.05 |
| Overall Length (mm) | 52 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.53 |
| Overall Width (mm) | 13.5 |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.8 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Compatible Wire Gauge (AWG) | 22-26 |
| Color | Black |
| Standards Met | Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant |
Panduit FPUD6X88MTG Data Sheets
| Part Drawings | Part Drawing - PDF - A41402 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
