Brand: Panduit
|
SKU:
681508

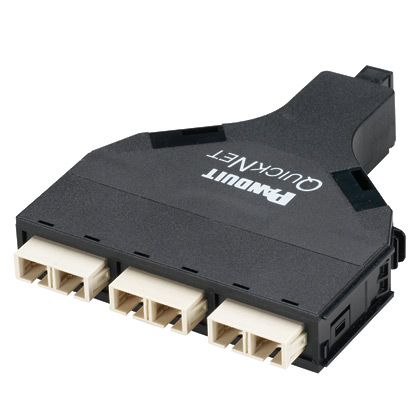

Panduit FQ6N-06-03AS | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$491.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQ6N-06-03AS | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$491.05
Unit price
Description
Description
Panduit FQ6N-06-03AS | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
6-fiber QN SFQ cassette, three SC duplex adapters to MTP
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
Panduit - FQ6N-06-03AS - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FQ6N-06-03AS - Specifications
| Connector Type | Sc Duplex |
|---|---|
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM1 |
| Number of Fibers | 6 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Electric Ivory |
| Material | Phosphor Bronze |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 21 |
| Overall Depth (In.) | 5 |
| Overall Depth (mm) | 128 |
| Product Type | SC Cassette |
| Standards Met | RoHS Compliant |
| Fiber Diameter (µm) | 62.5 |
| UPC | 07498396316 |
Panduit - FQ6N-06-03AS - Package Information
| UPC | 07498396316 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
Documents and Downloads
Documents and Downloads
- Panduit FQ6N-06-03AS Specification Sheet
- Panduit FQ6N-06-03AS Technical References
- Panduit FQ6N-06-03AS Technical References
- Panduit FQ6N-06-03AS Application Guides
- Panduit FQ6N-06-03AS Part Drawings
- Panduit FQ6N-06-03AS Specification Sheets
- Panduit FQ6N-06-03AS Application Guides
- Panduit FQ6N-06-03AS RoHS Statement
