Brand: Panduit
|
SKU:
681515

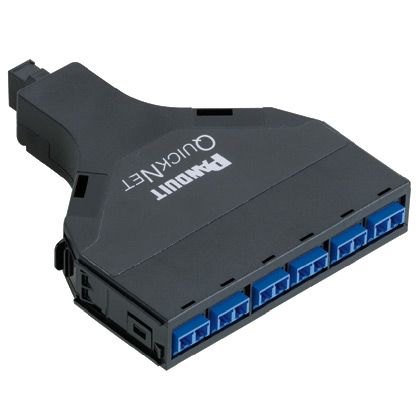

Panduit FQ9N-08-10AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$507.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQ9N-08-10AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$507.88
Unit price
Description
Description
Panduit FQ9N-08-10AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
8-fiber QuickNet SFQ cassette, OS1/OS2 9/125µm, standard loss, duplex LC to MTP, modified method A, pair flipped
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
Panduit - FQ9N-08-10AF - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FQ9N-08-10AF - Specifications
| Connector Type | Lc |
|---|---|
| Fiber Count | 8 |
| UNSPSC Code | 43223328 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 8 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Blue |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 21 |
| Overall Depth (In.) | 5 |
| Overall Depth (mm) | 128 |
| Product Type | SFQ Cassette |
| Application | Cable Management |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Fiber Diameter (µm) | 9 |
| UPC | 07498396388 |
Panduit - FQ9N-08-10AF - Package Information
| UPC | 07498396388 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
