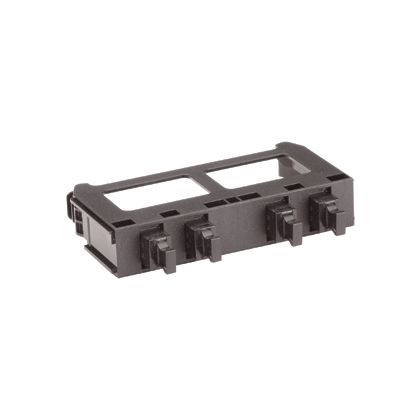

Panduit FQMAP45BL | QuickNet Fiber Adapter Panel, SFQ, 4 MPO, Type A
Description
Description
Maximize your data center space and accelerate network expansion with our SFQ MPO fiber adapter panel, with flexible configurations for optimal network performance.
MPO/MPO* FAP loaded with four MPO/MPO* fiber optic adapters; are compatible with QUICKNET Patch Panel.
Small Form Factor QuickNet (SFQ) MPO FAPs contain FOCIS 5 compatible fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Variations include panels with 4, 6 or 8 MPO adapters in either key-up to key-up or key-up to key-down configurations. Maximum density allows for 64 MPO ports in a 1RU space when used in conjunction with QuickNet Patch Panels. All SFQ FAPs snap quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration from 10G to 40/100G infrastructure.
Panduit QuickNet Fiber Optic Adapter Panel, Migration, MPO End A, Metal/Plastic
Panduit - FQMAP45BL - Features
- Factory assembled and 100% tested
- Significantly reduce installation time and labor by eliminating field connector terminations
- Lifetime traceability of test data to a Q.C. number on each fiber adapter panel
- Loaded with TIA/EIA-568.C3 suggested color identification scheme
Specifications
Specifications
Panduit - FQMAP45BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQMAP45BL |
| Connector Type | Mtp |
| Fiber Count | 4 |
| UNSPSC Code | 43223328 |
| Connection Type | MPO |
| Fiber Type | OM1/OM2/OM3/OM4/OS2 |
| Material | Plastic |
| Adapter Color | Black |
| Fiber Polarity | Method A |
| Overall Depth (In.) | 2.39 |
| Overall Depth (mm) | 61 |
| Overall Width (In.) | 4.15 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.81 |
| Overall Height (mm) | 21 |
| Number of Ports | 4 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Rear Loading Adapter Panel |
| Color | Black |
| Sub Brand | QuickNet |
| Part Features | Significantly reduce installation time and labor by eliminating field connector terminations |
| UPC | 07498339234 |
Panduit - FQMAP45BL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
