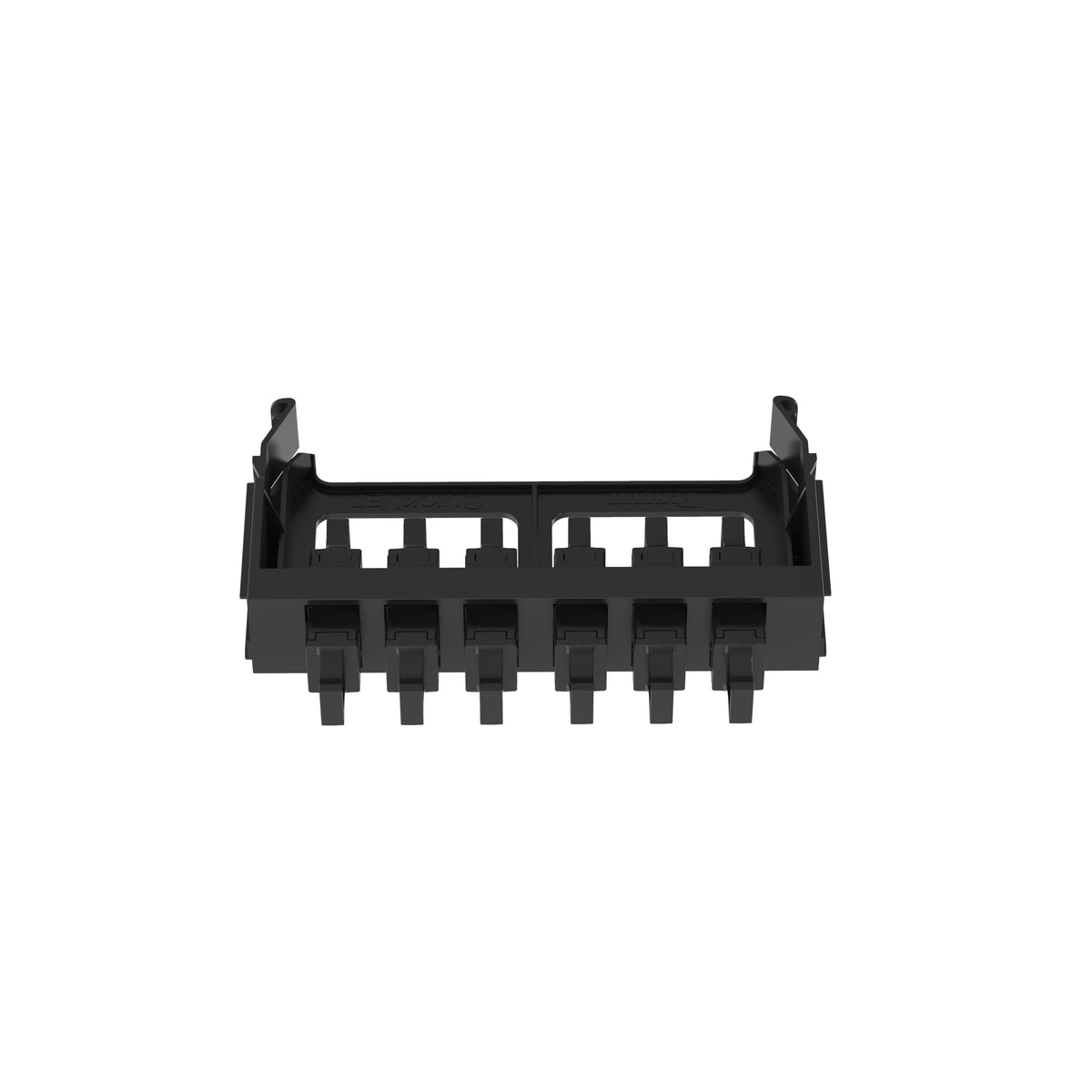

Panduit FQMAP66CG | QuickNet Fiber Adapter Panel, SFQ, 6 MPO, Type B
Description
Description
Maximize your data center space and accelerate network expansion with our SFQ MPO fiber adapter panel, with flexible configurations for optimal network performance.
The QuickNet SFQ MPO Fiber Adapter Panel " Type B features 6 MPO key-up/key-up adapters. It snaps quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration. It is charcoal gray and comes with installed dust caps.
Small Form Factor QuickNet (SFQ) MPO FAPs contain FOCIS 5 compatible fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Variations include panels with 4, 6 or 8 MPO adapters in either key-up to key-up or key-up to key-down configurations. Maximum density allows for 64 MPO ports in a 1RU space when used in conjunction with QuickNet Patch Panels. All SFQ FAPs snap quickly into the rear of QuickNet Patch Panels for easy network deployment and quick migration from 10G to 40/100G infrastructure.
Panduit QuickNet Fiber Optic Adapter Panel, Migration, MPO End A, Metal/Plastic, Black
Panduit - FQMAP66CG - Features
- Factory assembled and 100% tested
- Significantly reduce installation time and labor by eliminating field connector terminations
- Lifetime traceability of test data to a Q.C. number on each fiber adapter panel
Specifications
Specifications
Panduit - FQMAP66CG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQMAP66CG |
| Connector Type | Mpo |
| UNSPSC Code | 43223328 |
| Connection Type | MPO |
| Fiber Type | OM1/OM2/OM3/OM4/OS2 |
| Material | Plastic |
| Adapter Color | Charcoal Gray |
| Fiber Polarity | Method B |
| Overall Depth (In.) | 2.39 |
| Overall Depth (mm) | 61 |
| Overall Width (In.) | 4.15 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.81 |
| Overall Height (mm) | 21 |
| Number of Ports | 6 |
| Mount Method | DIN Rail |
| Resistance Properties | Flame-Resistant |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Used in high-density network applications as specified in the Data Center Cabling Standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas. |
| Color | Black |
| Sub Brand | QuickNet |
| UPC | 07498339233 |
Panduit - FQMAP66CG - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
