Brand: Panduit
|
SKU:
699693

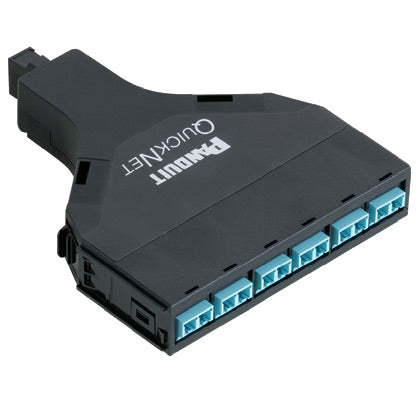

Panduit FQSA-12-10B2 | SFQ Cassette | UPC - 07498379567
Regular price
$869.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQSA-12-10B2 | SFQ Cassette | UPC - 07498379567
Regular price
$869.01
Unit price
Description
Description
12-fiber OM4+ QuickNet SFQ MTP cassette, Ultra IL, Duplex LC to MTP method B end 2
Panduit SFQ Cassette Key Specs
| Fiber Type | SignatureCore/OM4+ |
| Sub Brand | SFQ |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106 |
| Overall Depth (In.) | 5 |
| Overall Depth (mm) | 128 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 21 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Product Type | SFQ Cassette |
| Application | Cable Management |
| Color | Aqua |
Panduit SFQ Cassette Data Sheets
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | QuickNet SFQ Series MTP* Fiber Optic Cassettes | Download and View |
| Application Guides | Deploying Fiber Cabling in the Data Center | Download and View |
