Brand: Panduit
|
SKU:
496597

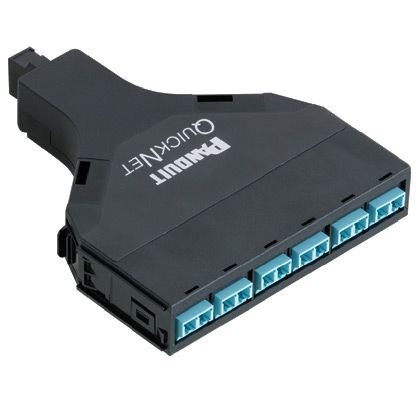

Panduit FQXN-12-10AF | QuickNet MPO-LC Fiber Cassette OM3, 12 Fiber, Modified Method A, Std IL
Regular price
$732.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQXN-12-10AF | QuickNet MPO-LC Fiber Cassette OM3, 12 Fiber...
Regular price
$732.78
Unit price
Description
Description
Panduit FQXN-12-10AF | QuickNet MPO-LC Fiber Cassette OM3, 12 Fiber, Modified Method A, Std IL
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
12-fiber QN SFQ cassette, six LC duplex adapters to MTP
Panduit QuickNet Fiber Optic Cassette, Series: SFQ, Duplex Adapter, LC End A, Male MPT End B, 12 Fibers, OM3 Multi-Mode Fiber
Panduit - FQXN-12-10AF - Features
- Compatible with QuickNet patch panels for up to 96 fiber connections in 1RU with QAPP48HDBL QuickNet 48 port angled patch panel
- Connect together with high density female MTP cable assemblies as interconnecting network segments for deploying a remote or data center location in minutes
- Significantly reduce installation time and labor by eliminating field connector termination
- Factory terminated, assembled and 100% tested
- Insertion loss data provided on every fiber cassette
- Return loss data provided on all single mode fiber cassettes
- Lifetime traceability of test data to a Q.C. number on each fiber cassette
- Modified method A, pair flipped
- Allows system designers to tailor configuration, reach and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment and improve flexibility and manageability for lower installation costs
- Specification Description
- Duplex Fiber Optic Cassette
- Fiber Type: Multimode
- Fiber Count: 12
- Connector Type: LC Duplex to MPO Male
- Material: Zirconia Ceramic
- Sleeve Type: Split
- Fiber Compatibility: OM3 10 GbE 50/125 um
- Performance Level: Standard Loss
- Return Loss: >26 dB
- Insertion Loss: 0.75 dB Maximum
- Polarity: Modified Method A, Pair-Flipped
- Adapter Type: LC Duplex
- Operating Temperature: 32 to 158 deg F (0 to 70 deg C)
- Storage Temperature: -40 to 158 deg F (-40 to 70 deg C)
- Installation Temperature: 32 to 140 deg F (0 to 60 deg C)
- Dimension: 5.1 Inch Length x 4.2 Inch Width x 0.8 Inch Height (129 mm x 106 mm x 21 mm)
Specifications
Specifications
Panduit - FQXN-12-10AF - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQXN-12-10AF |
| Connector Type | Lc - Mpo |
| Fiber Type | Om3 |
| Number Of Fibers | 12 Fiber |
| Type | Modules |
| UNSPSC Code | 43223300 |
| Fiber Type | OM3 |
| Connection Type | LC |
| Sub Brand | QuickNet |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (In.) | 12.62 |
| Overall Length (mm) | 320.55 |
| Overall Width (In.) | 9.9 |
| Overall Height (In.) | 10 |
| Overall Height (mm) | 254 |
| Product Type | Fiber Cassette |
| UPC | 07498396088 |
Panduit - FQXN-12-10AF - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
