Brand: Panduit
|
SKU:
681533

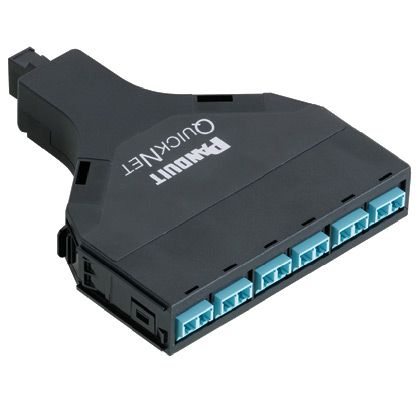

Panduit FQXO-08-10AS | 8-Fiber, QNSFQCass, OptimOM3, 50/125µm, EA
Regular price
$545.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQXO-08-10AS | 8-Fiber, QNSFQCass, OptimOM3, 50/125µm, EA
Regular price
$545.75
Unit price
Description
Description
Panduit FQXO-08-10AS | 8-Fiber,QNSFQCass,OptimOM3,50/125µm,EA
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
8-fiber QN SFQ cassette, four LC duplex adapters to MTP
Panduit QuickNet Fiber Optic Cassette, Method A Optimized, Series: SFQ, Duplex Adapter, LC End A, Male MPO End B, 8 Fibers, 10Gig OM3 50/125 um Multi-Mode Fiber, Zirconia Ceramic
Specifications
Specifications
Panduit - FQXO-08-10AS - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQXO-08-10AS |
| Connector Type | Lc |
| Fiber Count | 8 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM3 |
| Number of Fibers | 8 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 21 |
| Overall Depth (In.) | 5 |
| Overall Depth (mm) | 128 |
| Product Type | SFQ Cassette |
| Application | Cable Management |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498396382 |
Panduit - FQXO-08-10AS - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
