Brand: Panduit
|
SKU:
681535

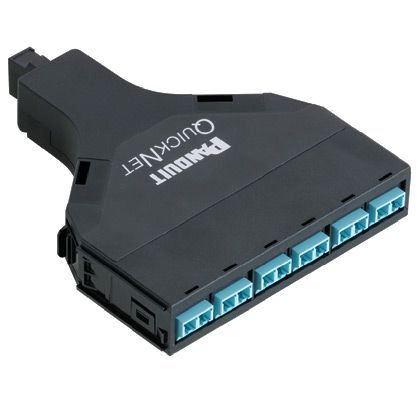

Panduit FQZN-06-03AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$614.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQZN-06-03AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
Regular price
$614.49
Unit price
Description
Description
Panduit FQZN-06-03AF | QuickNet™ SFQ Series MTP* Fiber Optic Cassette
6-fiber, QuickNet SFQ cassette, OM4 50/125µm, standard loss, duplex SC to MTP
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
Panduit - FQZN-06-03AF - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FQZN-06-03AF - Specifications
| Connector Type | Sc Duplex |
|---|---|
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM4 |
| Number of Fibers | 6 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 21 |
| Overall Depth (In.) | 5 |
| Overall Depth (mm) | 128 |
| Product Type | SFQ Cassette |
| Application | Cable Management |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498396376 |
Panduit - FQZN-06-03AF - Package Information
| UPC | 07498396376 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0658 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6576 |
