Panduit FQZO-06-03AF | QuickNet MPO-SC Fiber Cassette OM4, 6 Fiber, Modified Method A, Opt IL
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQZO-06-03AF | QuickNet MPO-SC Fiber Cassette OM4, 6 Fiber,...
Description
Description

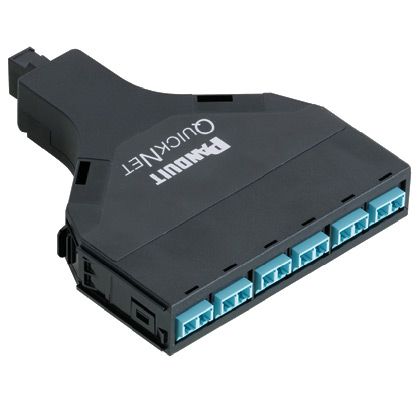

Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
6-fiber QuickNet SFQ cassette, optimized OM4 (50/125um), three LC duplex adapters to MTP
Panduit QuickNet Fiber Optic Cassette, Modified Method A Pair Flipped Optimized, Series: SFQ, Duplex Adapter, SC End A, Male MPO End B, 6 Fibers, 10Gig OM4 50/125 um Multi-Mode Fiber, Zirconia Ceramic
Specifications
Specifications
Panduit - FQZO-06-03AF - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQZO-06-03AF |
| Connector Type | Sc Duplex |
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM4 |
| Sub Brand | QuickNet |
| Number of Fibers | 12 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| UPC | 07498396377 |
Panduit - FQZO-06-03AF - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FQZO-06-03AF Specification Sheet
- Panduit FQZO-06-03AF Technical References
- Panduit FQZO-06-03AF Technical References
- Panduit FQZO-06-03AF Application Guides
- Panduit FQZO-06-03AF Part Drawings
- Panduit FQZO-06-03AF Specification Sheets
- Panduit FQZO-06-03AF Application Guides
- Panduit FQZO-06-03AF RoHS Statement
