Brand: Panduit
|
SKU:
519543

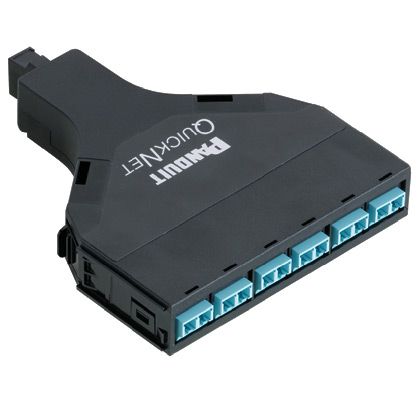

Panduit FQZO-12-10B2 | QuickNet SFQ MPO-LC Cassette, OM4, 12 Fiber, Method B, B2
Regular price
$790.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FQZO-12-10B2 | QuickNet SFQ MPO-LC Cassette, OM4, 12 Fiber,...
Regular price
$790.28
Unit price
Description
Description
Panduit FQZO-12-10B2 | QuickNet SFQ MPO-LC Cassette, OM4, 12 Fiber, Method B, B2
Maximize data center efficiency with a SFQ cassette, supporting high-speed ethernet connections over long distances in a space-saving design.
Panduit QuickNet Fiber Optic Cassette, Multi-Mode Optimized, Series: SFQ, LC Duplex Adapter, LC Duplex End A, Male MPO End B, 12 Fibers, 10 Gig 50/125 um OM4 Multi-Mode Fiber, Fiber
Panduit - FQZO-12-10B2 - Features
- MTP adapter(s) with male ferrules (pins) and PC polish
- Multi-mode with PC polish front connectivity
- Method B, B2 (1-12 array) polarity
- 0.5 dB link loss
- 70 deg C operating temperature
- -40 to 70 deg C storage temperature
- 60 deg C installation temperature
Specifications
Specifications
Panduit - FQZO-12-10B2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FQZO-12-10B2 |
| Fiber Type | OM4 |
| Sub Brand | QuickNet |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| Part Features | Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs. |
| UPC | 07498379625 |
Panduit - FQZO-12-10B2 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
