Brand: Panduit
|
SKU:
9955636
Panduit FR12ACB12M | Top Support Adjustable "C" | UPC - 07498383955
Regular price
$62.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR12ACB12M | Top Support Adjustable "C" | UPC - 0...
Regular price
$62.61
Unit price
Description
Description

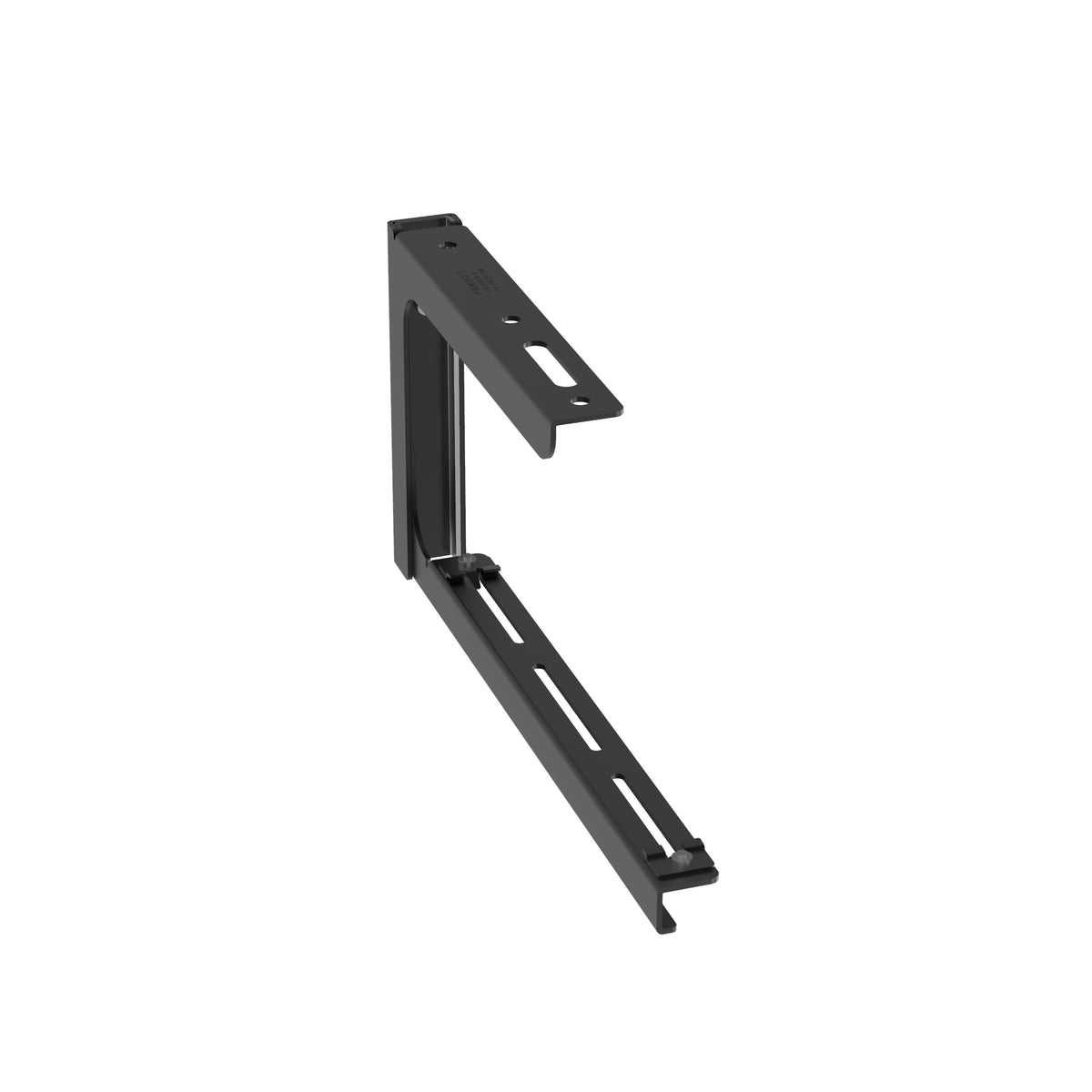

Panduit FiberRunner QuikLock Adjust C-Bracket, For Use With: 12 x 4 in FiberRunner Routing System, Steel, Black, 17.74 in L x 1.66 in W x 8.72 in H
- Used to support the 12 x 4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system
- Two position height adjustments to accommodate system with or without hinged cover
- The pre-assembled slide clamps enable fast assembly to channel
- Use 7/16 in nut driver on slide clamps
- Bracket is secured to threaded rod with two nuts
Panduit Panduit FR12ACB12M | Top Support Adjustable "C" | UPC - 07498383955 Key Specs
| Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Product Type | Top Support Adjustable "C" |
| Sub Brand | FiberRunner |
| Color | Black |
| Finish/Coating | Powder-Coated |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) M12X 1.75 Hex Nuts, (2) 1/2 Helical Spring Lockwashers (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex KEPS Lock Nut |
| Material | Steel |
| Number of Pieces | 7 |
| Overall Height (In.) | 8.72 |
| Overall Height (mm) | 221.5 |
| Overall Length (In.) | 17.74 |
| Overall Length (mm) | 450.6 |
| Overall Width (In.) | 1.66 |
| Overall Width (mm) | 42.2 |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 12x4 |
| Compatible Threaded Rod Size (In.) | 0.47 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 12 x 4 FiberRunner Brackets |
Panduit Panduit FR12ACB12M | Top Support Adjustable "C" | UPC - 07498383955 Environmental Information
| Panduit's RoHS Statement | Download and View |
