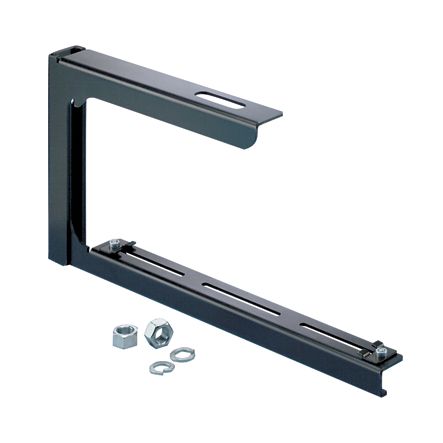

Panduit FR12ACB58 QL ADJUSTABLE C BRACKET 5/8 INCH
Regular price
$66.58
Unit price
Brand: Panduit
|
SKU:
FR12ACB58
Regular price
$66.58
Unit price
Description
Description
Panduit FR12ACB58 | FIBERRUNNER TOP SUPPORT ADJUSTABLE "C"
Used to support the 12x4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 5/8in threaded rod.
Specifications
Specifications
Panduit - FR12ACB58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR12ACB58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR12ACB58 |
| Item Description | FIBERRUNNER TOP SUPPORT ADJUSTABLE "C" |
| Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Product Type | Top Support Adjustable "C" |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 5/8-11 Heavy Hex Nuts, (2) 5/8 Helical Spring Lockwashers, (1) 1/4-20 T-Bolt, (1) 1/4 -20 Hex KEPS Lock Nut |
| Material | Steel |
| Number of Pieces | 7 |
| Overall Height (In.) | 8.72 |
| Overall Height (mm) | 221.5 |
| Overall Length (In.) | 17.74 |
| Overall Length (mm) | 450.6 |
| Overall Width (In.) | 1.66 |
| Overall Width (mm) | 42.2 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 12x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 12 x 4 FiberRunner Brackets |
Panduit - FR12ACB58 - Package Information
| UPC | 07498383594 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2102 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - FR12ACB58 - Videos
| Video 1 | Click to View |
|---|
