Brand: Panduit
|
SKU:
285869

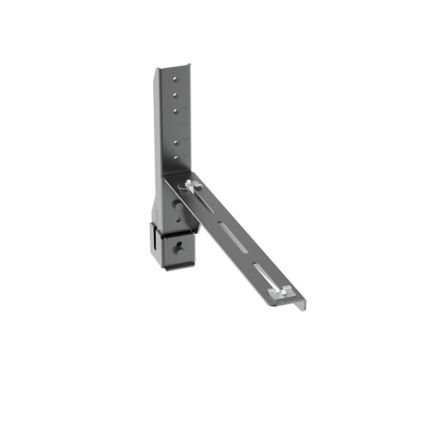

Panduit FR12ALB | Mounting Ladder Bracket for Fiber Pathways
Regular price
$124.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR12ALB | Mounting Ladder Bracket for Fiber Pathways
Regular price
$124.56
Unit price
Description
Description
Panduit FR12ALB | Mounting Ladder Bracket for Fiber Pathways
The steel ladder bracket is used in cable routing systems to support the 12x4 FiberRunner System by directly attaching to any 0.375 inch H x 1.5 inch L (9.5mm x 38.1mm) ladder rack rails. It does not require a threaded rod. The ladder bracket includes hardware for mounting channel to bracket.
Specifications
Specifications
Panduit - FR12ALB - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR12ALB - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR12ALB |
| Item Description | Mounting Ladder Bracket for Fiber Pathways |
| Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Product Type | Ladder Rack |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Clasp Bracket, (1) Vertical Bracket Assembly, (1) "L" Bracket Assembly, (3) 5/16 Helical Spring Lockwashers, (3) 5/16-18x3/4 Hex Head Cap Screws, (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex KEPS Lock Nut |
| Material | Steel |
| Number of Pieces | 11 |
| Overall Height (In.) | 12.92 |
| Overall Height (mm) | 328.2 |
| Overall Length (In.) | 18.72 |
| Overall Length (mm) | 475.5 |
| Overall Width (In.) | 2.26 |
| Overall Width (mm) | 57.4 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 12x4 |
| Series Type | 12 x 4 FiberRunner Brackets |
Panduit - FR12ALB - Package Information
| UPC | 07498383588 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1746 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - FR12ALB - Videos
| Video 1 | Click to View |
|---|
