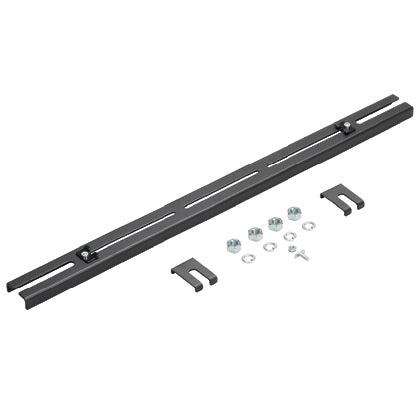

Panduit FR12TB2412M | Trapeze | UPC - 07498312105
Regular price
$190.72
Unit price
Brand: Panduit
|
SKU:
699700
Regular price
$190.72
Unit price
Description
Description
Panduit Trapeze Bracket, For Use With: FiberRunner 12 x 4 in Routing System, Steel, Black, 32 in L x 2.19 in W x 0.86 in H
Features + Benefits
- Used to support the 12 x 4 system by spanning two threaded rod drops that are 18 in apart
- Can be installed from above or below
- Bracket is secured to each threaded rod with two-nuts
- The pre-assembled slide clamps enable fast assembly to channel
- Use 7/16 in nut driver on slide clamps
Panduit FR12TB2412M Key Specs
| Application | (1) Used to Support the 12X4 System by Spanning Two Threaded Rod Drops that are 24 inch Apart, (2) Bracket is Secured to Each Threaded Rod With Two Nuts, (3) The Pre-Assembled Slide Clamps Enable Fast Assembly to Channel. |
| Product Type | Trapeze |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Trapeze Bracket |
| Includes | (1) Bracket Assembly, (2) 1/2 Clamp Plates, (4) 1/2 Helical Spring Lockwashers, (1) 1/4-20 T-Bolt, (1) 1/4 -20 Hex KEPS Nut, (4) M12x1.75 Hex Nuts |
| Material | Steel |
| Number of Pieces | 13 |
| Overall Height (In.) | 0.86 |
| Overall Height (mm) | 21.8 |
| Overall Length (In.) | 32 |
| Overall Length (mm) | 812.8 |
| Overall Width (In.) | 2.19 |
| Overall Width (mm) | 55.6 |
| System Dimensions | 12x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.47 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 12 x 4 FiberRunner Brackets |
Panduit FR12TB2412M Data Sheets
| Part Drawings | 24-fiber Duplex LC Cassettes - Method B: 10F113AW-DC-24 | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | QuickNet MTP* Fiber Optic Cassettes | Download and View |
