Brand: Panduit
|
SKU:
288644
Panduit FR12TRBN58M | FIBERRUNNER EXISTING THREADED ROD, FOR 12X4 SYSTEM, FOR 16MM THREADED ROD
Regular price
$70.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR12TRBN58M | FIBERRUNNER EXISTING THREADED ROD, FOR 12X4 S...
Regular price
$70.49
Unit price
Description
Description
Panduit FR12TRBN58M | FIBERRUNNER EXISTING THREADED ROD, FOR 12X4 SYSTEM, FOR 16MM THREADED ROD

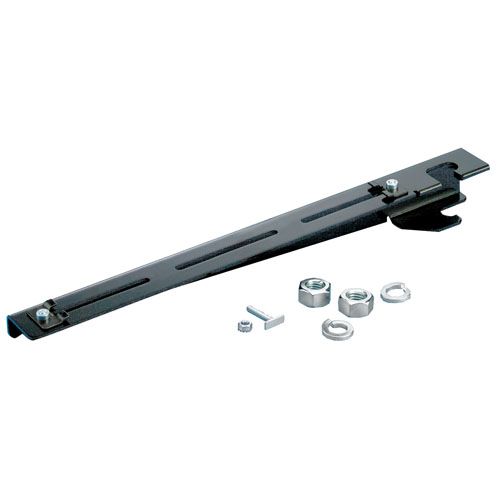

Used to support the 12x4 system from new threaded rod installations. Bracket is secured to threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
Panduit FR12TRBN58M New 16mm Threaded Rod, Quiklock Bracket For 12 X 4 Fiberrunner, Steel
Specifications
Specifications
Panduit - FR12TRBN58M - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR12TRBN58M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR12TRBN58M |
| Item Description | FIBERRUNNER EXISTING THREADED ROD, FOR 12X4 SYSTEM, FOR 16MM THREADED ROD |
| Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Product Type | New Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 5/8 Helical Spring Lockwashers, (1) 1/4-20 T-Bolt, (1) 1/4 -20 Hex KEPS Nut, (4) M16x2 Hex Nuts |
| Material | Steel |
| Number of Pieces | 7 |
| Overall Height (In.) | 2 |
| Overall Height (mm) | 50.8 |
| Overall Length (In.) | 18.75 |
| Overall Length (mm) | 476.2 |
| Overall Width (In.) | 1.82 |
| Overall Width (mm) | 46.2 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 12x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 12 x 4 FiberRunner Brackets |
| Components | SUPPORT SYSTEMS |
| Material | STEEL |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FR12TRBN58M - Package Information
| UPC | 07498383584 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2610 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
